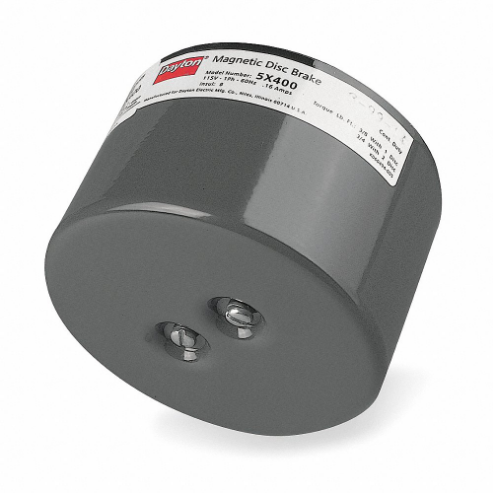

| Item | Brake |
| Brake Mouting Position | Horizontal |
| Coil Voltage | 115V AC |
| Continuous Duty | Yes |
| Converts | Motor To A Brake Motor |
| Duty Cycle | Continuous |
| Enclosure Type | Dripproof |
| Features | One Disc Can Easily Be Removed To Reduce Torque To 3/8 Ft-Lb |
| Function | Provide 3/4 Ft-Lb Stopping And Holding Action On 1/14 To 1/4 Hp Shaded Pole, Splitphase And Psc Gearmotors |
| Keyway Depth | 3/32" |
| Keyway Width | 3/16" |
| Length | 3.031" |
| Lever Release | Manual |
| Max. Ambient Temp. | 40°C |
| Max. Hp @ 1725 Rpm | 1/6 hp |
| Max. Hp @ 3450 Rpm | 1/2 hp |
| Mounting Orientation | Horizontal |
| Mounts On | Shaft Extension Of Gearmotors By Using Brake Hub And Mounting Bolts |
| Outside Dia. | 4.06" |
| Overall Length | 4" |
| Power Lead Length | 15" |
| Shaft Dia. | 5/8" |
| Type | Magnetic Disc |
| Voltage @ 60 Hz | 115V |
| Application | Brake Attaches To The Accessory End Of A Motor To Stop And Hold The Motor Shaft |
| Clutch/brake Type | End Mount Disc |
| Frequency | 50/60 Hz |
| Holding Current | 0.3/0.2A |
| Horsepower @ Rpm | 1/2 hp @ 3600 RPM, 1/4 hp @ 1800 RPM |
| Housing Material Finish | Red Primer |
| Includes | Brake and Instruction Manual |
| Inrush Current | 6.7/3.4A |
| Maximum Ambient Temperature | 40°C |
| Maximum Speed | 3600 RPM |
| Mounting Location | 56C Motor Flange |
| Outside Diameter | 4.06" |
| Phase | Single |
| Service Factor | 1.4 |
| Shaft Diameter | 5/8" |
| Standards | CSA CERTIFIED, ROHS COMPLIANT |
| Static Torque | 0.75 lbs.-ft. |
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 9.65 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 12.19 |
| HS code | 8505200000 |
| Country of Origin | US |
| Product | Model | Coil Volts | Diameter | Hz | Length | Nema/iec Frame | Type | Voltage @ 60 Hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
133-020-1000 | - | - | - | - | - | - | - | €201.96 | |
 |
3M366 | 115/208-230 VAC Or 110/208-220 VAC | - | 50/60 | - | 56C/140TC | C- Face Magnetic Disc | 115/208-230 | €970.81 | |
 |
4Z447 | 115/230 VAC | 5 11/16" | 60 | 4 3/8" | - | Magnetic Disc | 115/230 | €926.07 | |
|
6K233 | 115/208-230 VAC Or 110/208-220 VAC | - | 50/60 | - | 56C | C- Face Magnetic Disc | 115/208-230 | €1,031.59 | |
 |
MH2MPT203G | - | - | - | - | - | - | - | €54.96 | |
 |
MHGX4EC69GGS | - | - | - | - | - | - | - | €401.06 | |
 |
MHGXEC69GGS | - | - | - | - | - | - | - | €309.82 |
