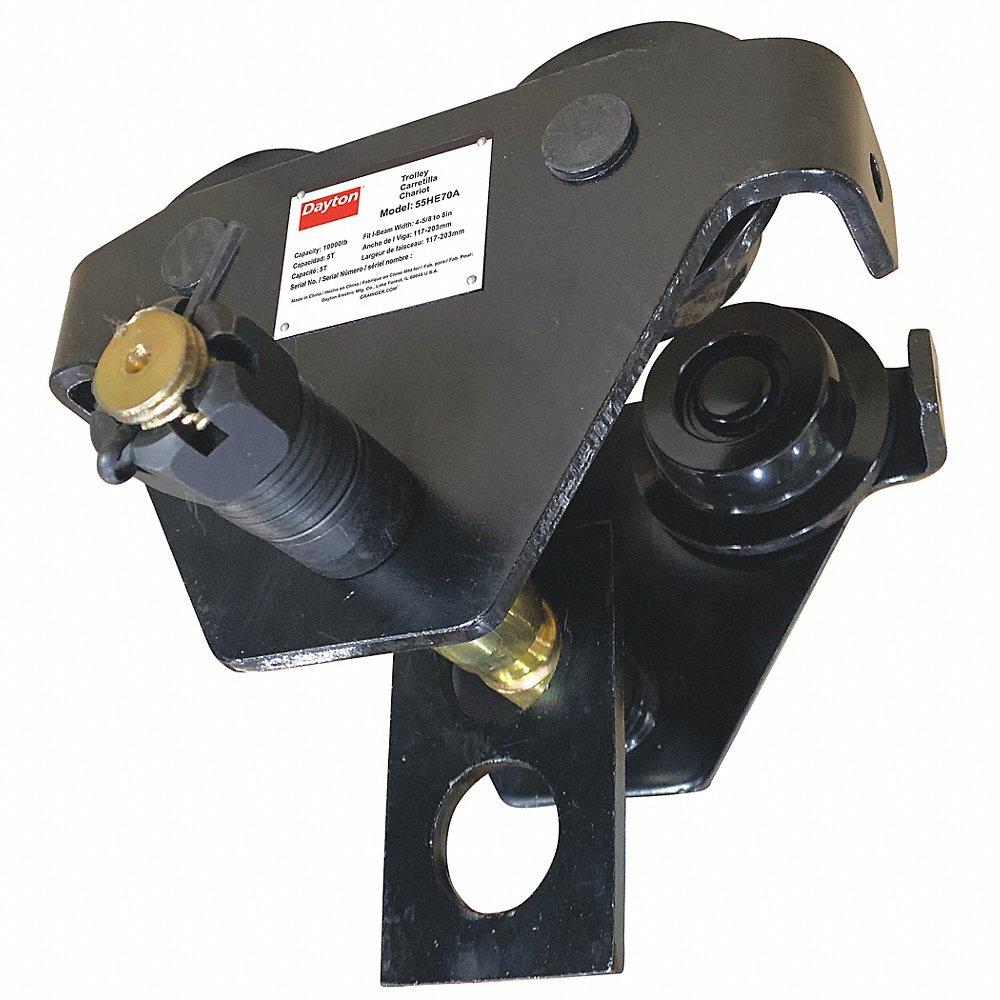

DAYTON 55HE70 Trolley, 10000 lbs. Capacity, 10 to 24-1/2 Inch Beam Height
Get it by Monday, Jun 16
€496.61 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Trolley |
| Compatible Series | Not Applicable |
| For Beam Shape | Flat |
| For Max. Beam Flange Width | 8" |
| For Max. Beam Height | 24 1/2" |
| For Min. Beam Flange Width | 4 5/8" |
| For Minimum Beam Height | 10" |
| Head Room To Bail | 2 5/8" |
| Head Room To Shaft | 8 39/64" |
| Headroom To Connecting Shaft | 8 5/8" |
| Headroom To Mounting Point | 2 5/8" |
| Includes | Hanger Plate, Hanger Shaft, Washers |
| Min. Radius Curve | 39 3/8" |
| Trolley Frame Material | Cast Iron |
| Trolley Type | Push |
| Trolley Wheel Dia. | 4 5/8" |
| Trolley Wheel Diameter | 4 3/5" |
| Trolley Wheel Material | Steel |
| For Beam Flange Width | 4 5/8" to 8" |
| For Maximum Beam Flange Width | 8" |
| For Maximum Beam Height | 24 1/2" |
| For Minimum Beam Flange Width | 4 5/8" |
| Head Room To Connecting Shaft | 2 5/8" |
| Head Room To Mounting Point | 8 5/8" |
| Manufacturer's Warranty Length | 1 yr. |
| Max Hoist Load Capacity | 10000 lbs. |
| Minimum Radius Curve | 39 3/8" |
| Standards | ASME B30.17 |
| Ship weight (kg) | 47.25 |
