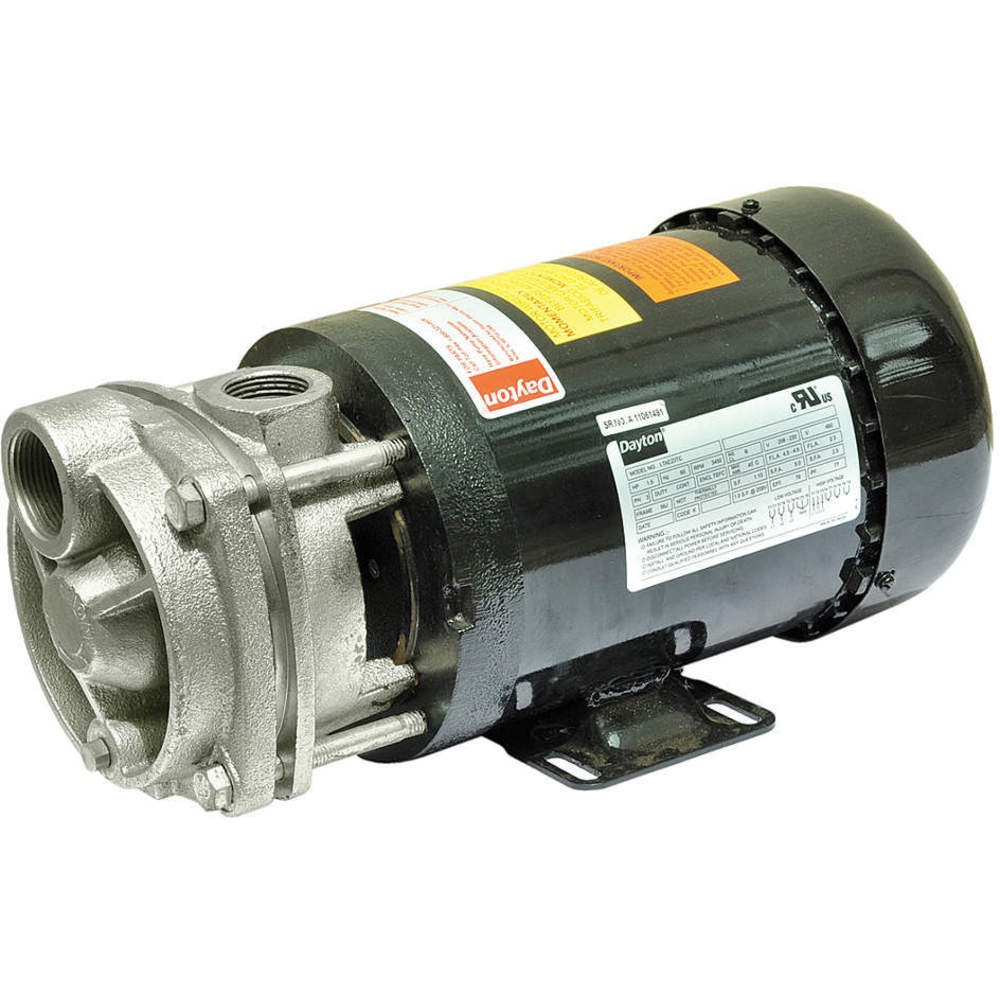

DAYTON 4JPF9 Turbine Pump 1 1/2 Hp 3-phase 4.6/2.3 Amp
Get it by Monday, Jun 16
€1,167.40 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Turbine pump |
| Amps | 2.3-4.5/4.6A |
| Bearing Type | Ball |
| Best Efficiency Flow Range @ Head | 40 to 100 GPM @ 8.3 to 5.6 to ft. |
| Best Efficiency Flow Rate @ Head | 7 GPM @ 70 ft. |
| Best Efficiency Head | 70 ft. |
| Bracket Finish | Nickel Plated |
| Compatible Discharge Pipe Size | 1" |
| Compatible Intake Pipe Size | 1 1/4" |
| Cover Material | Cast Iron |
| Drain Plug | Easily Accessible At Bottom |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Designed To Handle Liquids With Entrained Air |
| Finish | Zinc Plated |
| Flow Rate @ 10 Psi | 9.7 GPM |
| Flow Rate @ 100 Psi | 5.6 GPM |
| Flow Rate @ 120 Psi | 4.7 GPM |
| Flow Rate @ 140 Psi | 0 GPM |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 160 Psi | Not Applicable |
| Flow Rate @ 180 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 9.2 GPM |
| Flow Rate @ 200 Psi | Not Applicable |
| Flow Rate @ 220 Psi | Not Applicable |
| Flow Rate @ 240 Psi | Not Applicable |
| Flow Rate @ 260 Psi | Not Applicable |
| Flow Rate @ 30 Psi | 8.8 GPM |
| Flow Rate @ 40 Psi | 8.3 GPM |
| Flow Rate @ 50 Psi | 7.8 GPM |
| Flow Rate @ 60 Psi | 7.4 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 75 Psi | 6.8 GPM |
| Flow Rate @ 80 Psi | 6.5 GPM |
| Flow Rate @ 90 Psi | 6.1 GPM |
| For Media Type | Water |
| Frame | 56J |
| Frequency | 60 Hz |
| Gasket Material | Buna N |
| Grade | Grade 304, Grade 316 |
| Height | 7 1/8" |
| Housing Material | Cast Iron |
| Hp | 1 1/2 hp |
| Impeller Design | Open |
| Impeller Material | Bronze |
| Impeller Type | Open |
| Inlet Pressure | 170 psi |
| Inlet Size | 1 1/4" |
| Length | 14 2/5" |
| Material | Stainless Steel |
| Max. Case Pressure | 200 psi |
| Max. Flow Rate | 9.7 GPM |
| Max. Media Temp. | 230°F |
| Max. Pressure | 140 psi |
| Max. Specific Gravity | 1 |
| Media Type | Water |
| Min. Flow Rate | 4.7 GPM |
| Min. Media Temp. | -20°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56J |
| Motor Type | Three Phase |
| Npshr | 170 psi |
| Operation | Manual |
| Outlet | 1" |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Height | 7.13" |
| Overall Width | 8 22/25" |
| Phase | 3 |
| Pump Housing Material | Cast Iron |
| Rpm | 3450 RPM |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Buna N, Carbon Ceramic, Stainless Steel |
| Seal Type | Mechanical , Mechanical Seal |
| Seat Material | Carbon Ceramic |
| Self Priming | Yes |
| Service Factor | 1.15 |
| Shaft Material | Bronze, Stainless Steel |
| Shaft Size | 5/8" |
| Shut Off Pressure | 140 psi |
| Shut Off Pressure (maximum) | 140 psi |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | Centrifugal |
| Voltage | 208/230/460V AC |
| Volute Material | Cast Iron |
| Wetted Material | Bronze, Buna N, Carbon Ceramic, Cast Iron, Stainless Steel |
| Width | 8 7/8" |
| Case Pressure (maximum) | 200 psi |
| Compatible With Media Type | Water |
| Connection Type | NPT |
| Flow Rate (maximum) | 9.7 GPM |
| Flow Rate (minimum) | 4.7 GPM |
| Horsepower | 1 1/2 hp |
| Intake And Discharge Size | 1 1/4", 1" |
| Media Temperature (minimum) | -20°F |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Nameplate Voltage | 208-230/460V AC |
| Priming | Self Priming |
| Rpm (maximum) | 3450 RPM |
| Standards | UL LISTED |
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 34.54 |
| Ship length (cm) | 56.64 |
| Ship width (cm) | 28.96 |
| HS code | 8413702005 |
| Country of Origin | IN |
| Product | Model | Amps | Bearing Type | Best Efficiency GPM @ Head | Best Efficiency Range GPM @ Head | Construction | Drain Plug | Frame | GPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4JPE9 | 6.0-5.8/2.9 | Ball | 12 @ 75 Ft. | 50 - 130 @ 15.3 - 2.9 Ft. | Bronze impeller, Buna-N O-ring gaskets, mechanical seal with Buna-N and stainless steel parts and carbon / ceramic seats, cast iron cover and motor bracket with hard electroless nickel plating and replacable bronze shaft sleeve. | Easily Accessible at Bottom | 56J | 9.9 | €1,754.05 | |
 |
4JPF6 | 2.7-2.5/1.2 | Ball | 5.7 @ 75 Ft. | 60 - 100 @ 6.1 - 4.8 Ft. | Bronze impeller, Buna-N O-ring gaskets, mechanical seal with Buna-N and stainless steel parts and carbon / ceramic seats, cast iron cover and motor bracket with hard electroless nickel plating and replacable bronze shaft sleeve. | Easily Accessible at Bottom | 56J | 5.2 | €1,079.43 | |
 |
4JPG1 | 16.6/9.4-8.3 | Ball | 15.5 @ 75 Ft. | 40 - 80 @ 19.4 - 14.9 Ft. | Bronze impeller, Buna-N O-ring gaskets, mechanical seal with Buna-N and stainless steel parts and carbon / ceramic seats, cast iron cover and motor bracket with hard electroless nickel plating and replacable bronze shaft sleeve. | Easily Accessible at Bottom | 56J | 7.4 | €1,465.25 | |
 |
4JPG2 | 6.0-5.8/2.9 | Ball | 15.5 @ 75 Ft. | 40 - 80 @ 19.4 - 14.9 Ft. | Bronze impeller, Buna-N O-ring gaskets, mechanical seal with Buna-N and stainless steel parts and carbon / ceramic seats, cast iron cover and motor bracket with hard electroless nickel plating and replacable bronze shaft sleeve. | Easily Accessible at Bottom | 56J | 7.4 | €1,177.60 | |
 |
4P913 | - | - | - | - | - | - | - | - | €1,361.51 | RFQ
|
|
4P914 | - | - | - | - | - | - | - | - | €1,361.51 | RFQ
|
|
4P915 | - | - | - | - | - | - | - | - | €1,379.89 | RFQ
|
