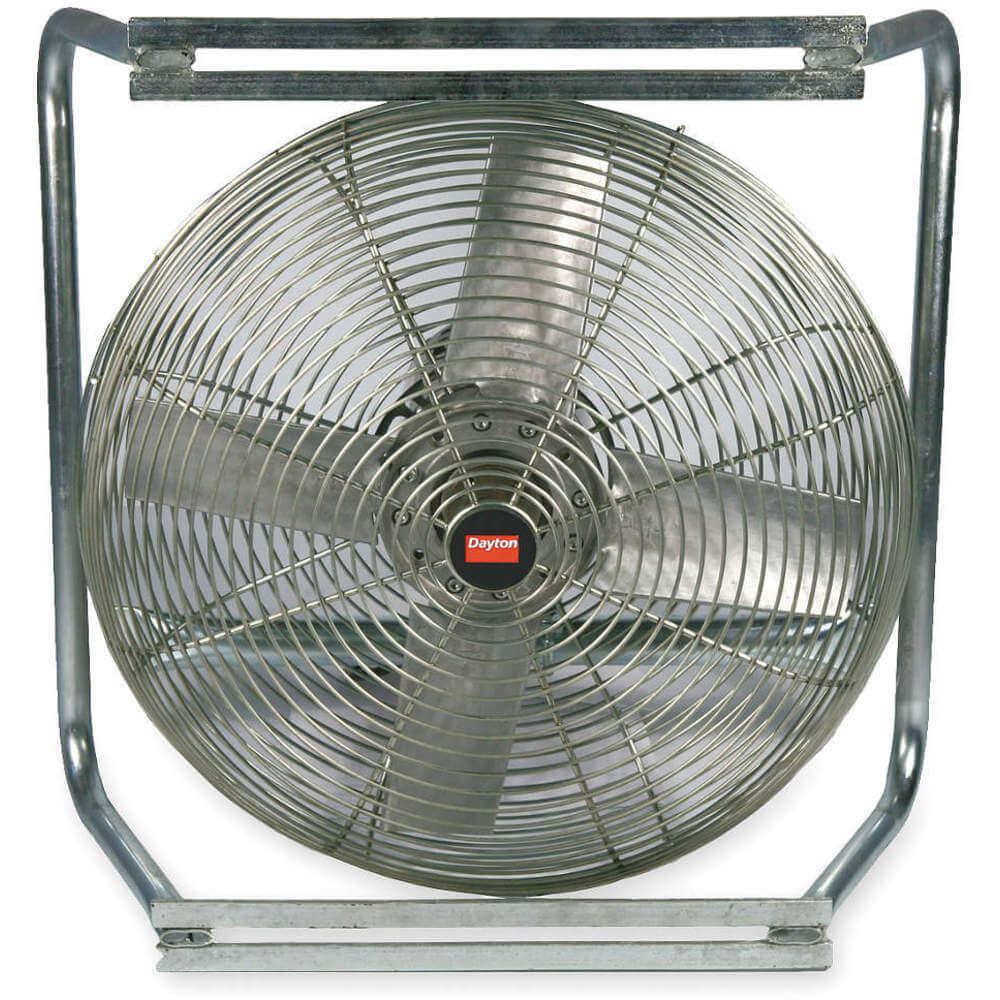

DAYTON 2ATX9 Transformer Fan 115/230v 20 Inch 6599 Cfm
Get it by Monday, Jun 16
€1,300.83 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Transformer Cooling Fan |
| Air Flow Rate | 6599 CFM |
| Bearing Type | Ball |
| Blade Dia. | 20" |
| Blade Material | Aluminum |
| Depth | 15 3/4" |
| Fan Cord Length | 15 ft. |
| Fan Item | Transformer Cooling Fan |
| Fan Mounting Type | Tubular Mount |
| Fan Phase | 1 |
| Frame | 48Y Yoke Mount |
| Guards | Steel |
| Height | 24" |
| Hp | 1/2 hp |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 15 3/4" |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Insulation | Class B |
| Motor Rpm | 1725 RPM |
| Motor Type | Permanent Split Capacitor |
| Mount | Tubular Mount |
| Mount Type | Tubular Mount |
| Number Of Blades | 4 |
| Phase | 1 |
| Power Cord Length | 15 ft. |
| Voltage | 115/230V |
| Width | 26" |
| Air Flow | 6599 CFM |
| Amps | 4.1/2.1A |
| Blade Diameter | 20" |
| Environmental Applications | Equipment Cooling |
| Guard Material | Steel |
| Hz | 60 |
| Includes | 15 ft. Weatherproof Power Cord |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Hp | 1/2 hp |
| Rpm | 1725 RPM |
| Standards | FANS INCLUDE WEATHERPROOF 15-FT UL RECOGNIZED POWER CORD, |
| Ship weight (kg) | 28.8 |
| Ship height (cm) | 49.28 |
| Ship length (cm) | 68.58 |
| Ship width (cm) | 69.09 |
| HS code | 8414596090 |
| Country of Origin | MX |
| Model | Air Flow | Amps Ac | Blade Dia. | Dimension A | Frame | Height | Hp | Max. Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 13F050 | 3100 cfm | 3.1/1.5 | 16" | 19" | 48Y Yoke Mount | 19" | 1/4 | 13-5/16" | €1,090.22 | |
| 13F051 | 4600 cfm | 3.1/1.5 | 20" | 23" | 48Y Yoke Mount | 23" | 1/4 | 13-5/16" | €1,294.82 | |
| 13F052 | 6800 cfm | 3.4/1.7 | 24" | 27" | 48Y Yoke Mount | 27" | 1/3 | 13-5/16" | €1,389.48 | |
| 13F053 | 4590 cfm | 1.1-1.2/0.6 | 16" | 19" | 48Y Yoke Mount | 19" | 1/4 | 13-5/16" | €1,078.03 | |
| 13F054 | 5000 cfm | 1.1-1.2/0.6 | 20" | 23" | 48Y Yoke Mount | 23" | 1/4 | 13-5/16" | €1,279.57 | |
| 13F055 | 7000 cfm | 1.4-1.5/.75 | 24" | 27" | 48Y Yoke Mount | 27" | 1/3 | 13-5/16" | €1,371.17 | |
| 13F056 | 3100 cfm | 1.3-1.4/0.7 | 16" | 19" | 48Y Yoke Mount | 19" | 1/4 | 13-5/16" | €1,035.27 |
