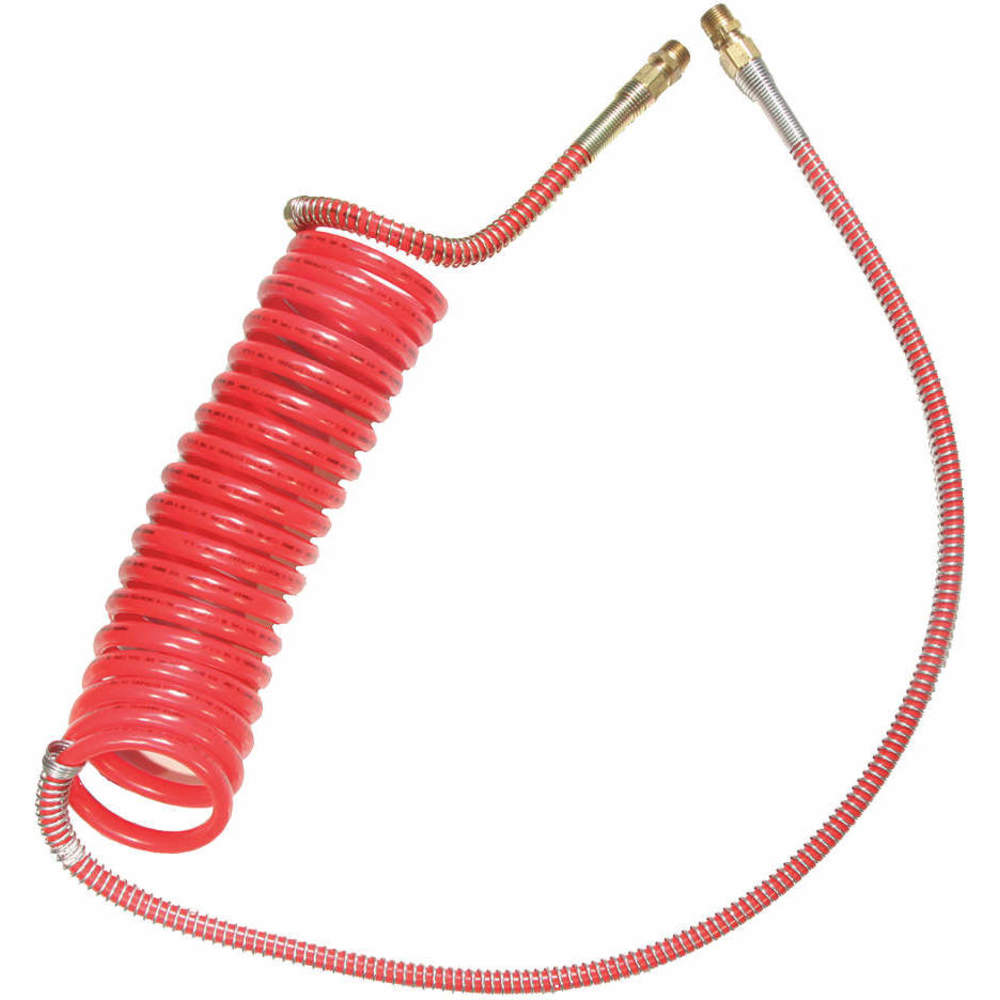

CMI 33039R Brake Line Coil Assembly Red 96 Inch
Get it by Tuesday, Jun 17
€166.16 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Brake Line Coil |
| Color | Red |
| Finish | Red |
| Length | 96" |
| Material | Nylon |
| Thread Size | 1/2"-14 |
| Tube Size | 1/2" |
| Type | Assembly |
| Application | Air Brake Coils |
| Coiled Air Tube Application | Emergency And Service |
| Fitting Side A Connection Type | NPT |
| Fitting Side A Gender | Male |
| Fitting Side A Material | Brass |
| Fitting Side A Size | 3/8" |
| Fitting Side A Thread Size | 1/2" |
| Fitting Side B Size | 3/8" |
| Fitting Side B Connection Type | NPT |
| Fitting Side B Gender | Male |
| Fitting Side B Material | Brass |
| Fitting Side B Thread Size | 1/2" |
| Includes Fittings | Yes |
| Jacket Color | No Jacket |
| Jacket Material | NO JACKET |
| Maximum Operating Temperature | 200°F |
| Maximum Working Pressure | 150 psi |
| Minimum Operating Temperature | -40°F |
| Outside Diameter | 1/2" |
| Overall Length | 15 ft. |
| Product Type | Air Coil Set |
| Resistance Properties | Crack Resistant |
| Specific Fitting Side A Shape | STRAIGHT |
| Specific Fitting Side B Shape | Straight |
| Standards | FMVSS 571.106 AND 593.45, SAE J246, SAE J476, SAE J844 |
| Temperature Range | -40°F to +200°F |
| Tube Material | Nylon |
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 43.18 |
| HS code | 3917310000 |
| Product | Model | Finish | Price | |
|---|---|---|---|---|
 |
33039B | Blue | €159.54 |
