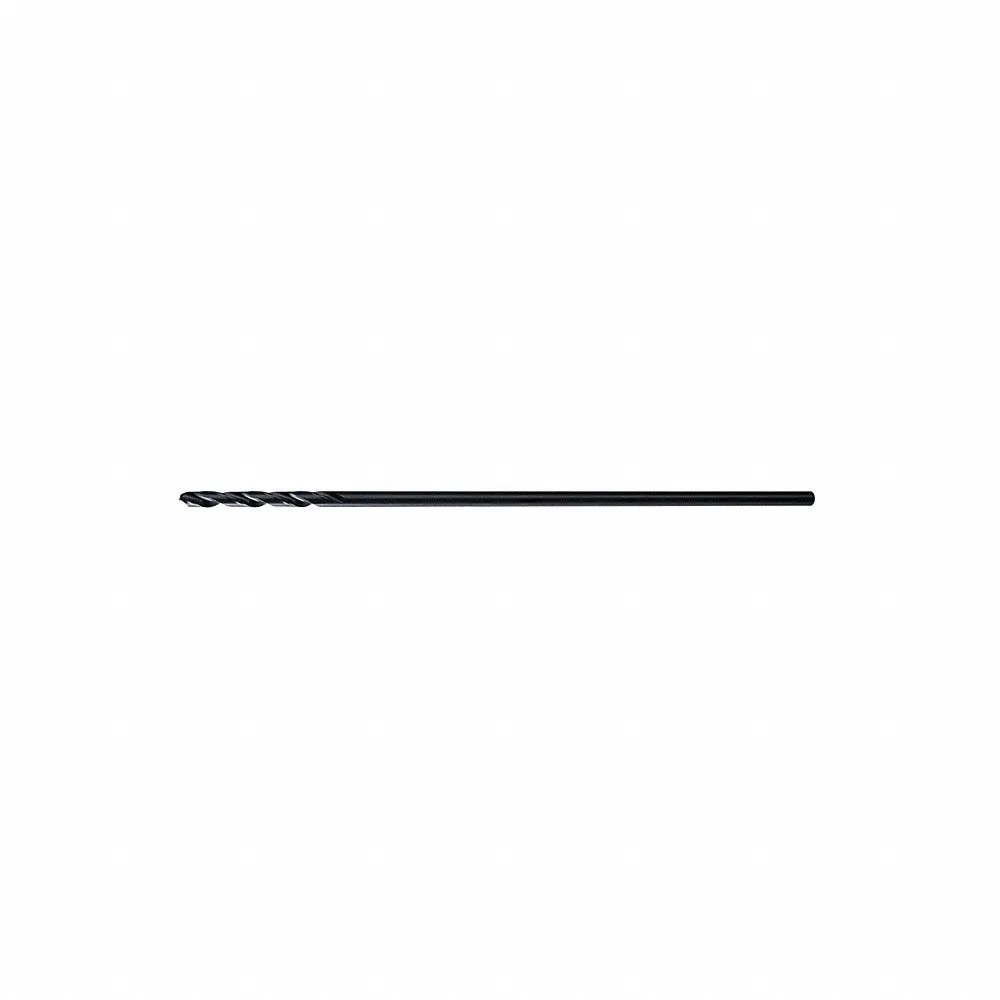

| Aircraft Drill | Yes |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4688 |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 15/32" |
| Drill Length Class | Extra Long |
| Finish - Machining | Steam Oxide |
| Flute Length | 4 5/16" |
| Flute Type | Spiral |
| Helix Angle | 21° to 34° |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | Heavy Duty |
| Maximum Drilling Depth | 3.2344" |
| Measurement System | Decimal Inch |
| Number Of Flutes | 2 |
| Overall Length | 12" |
| Primary Material Application | Aluminum, Cast Iron, Steel |
| Primary Material Application Iso Code | P |
| Shank Dia. | 0.468" |
| Shank Length | 7.6875" |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Ship weight (kg) | 1.35 |
| Ship length (cm) | 30.48 |
| Country of Origin | US |
