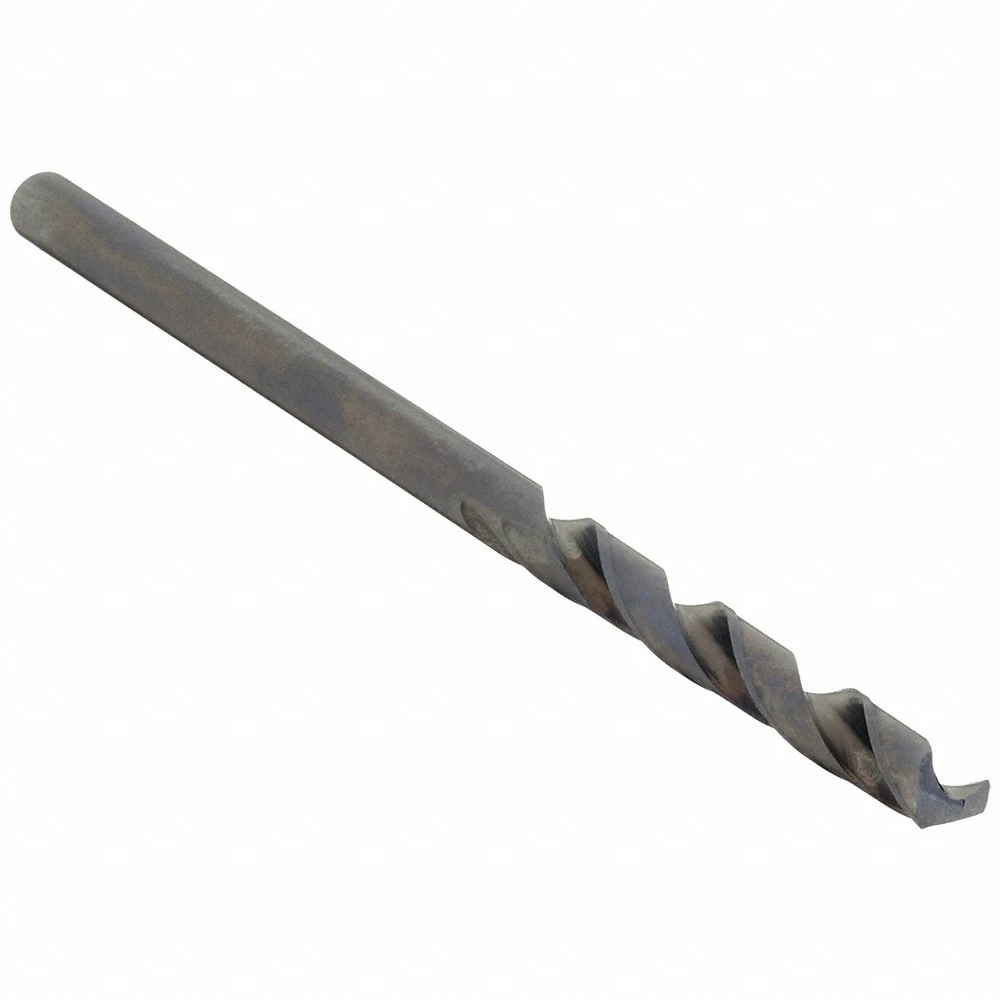

| Item | Extra Long Drill Bit |
| Application | For Carbon Steel, Alloy Steel, Cast Iron |
| Coolant Fed | Non Coolant Through , Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.25 |
| Depth X Dia. Ratio | 4xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Material | High Speed Steel |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.052" |
| Finish | Black Oxide |
| Flute Length | 2 3/4" |
| Flute Type | Spiral |
| Grade | Heavy Duty , High Performance |
| Helix Angle | +21° to +34° |
| List Number | 1803 |
| Material | High Speed Steel |
| Max. Drilling Depth | 1" |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Nickel, Steel, Titanium |
| Primary Material Application Iso Code | H, K, N, P, S |
| Shank Dia. | 1/4" |
| Shank Length | 3 1/4" |
| Shank Type | Straight |
| Size | 1/4" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch , Imperial |
| Depth:dia. Ratio | 4xD |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 1/4" |
| Drill Diameter Tolerance | 0"/-0.0007" |
| Finish - Machining | Black Oxide |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | High Performance |
| Maximum Drilling Depth | 1" |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Standards | ASME |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
