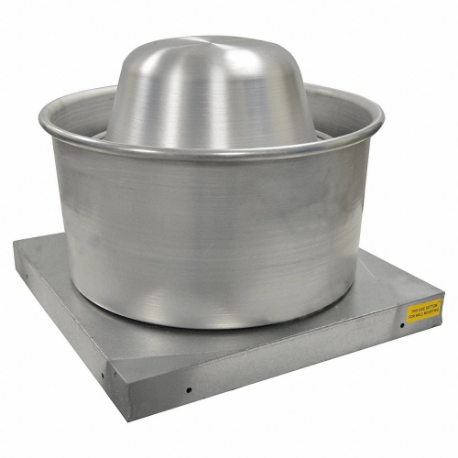

CANARM ALX090UD Upblast Exhauster, Direct Drive, 9 Inch Widthheel, 525 cfm, 1/12 hp, 115/230VAC, 1-ph
Get it by Tuesday, Jun 17
€1,040.34 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Exhaust |
| Application | Commercial Buildings, Offices, Restaurants, Warehouses |
| Assembly | Assembled |
| Base Dia. | Not Applicable |
| Base Height | 2" |
| Base Length | 19" |
| Base Shape | Square |
| Base Width | 19" |
| Cutout Length | 13" |
| Drive Type | Direct Drive |
| Electrical Connection | Wire Lead , Wire Leads |
| Exhaust Airflow @ 0.000 In Sp | 525 CFM |
| Exhaust Airflow @ 0.250 In Sp | 425 CFM |
| Exhaust Airflow @ 0.500 In Sp | 340 CFM |
| Features | On-Board Speed Adjustment Allows Simple Setup And Balancing With LED Display, Quick Release Latches For Easy Motor Access |
| For Air Type | Clean Air |
| Frequency | 50/60 Hz |
| Housing Material | Aluminum , Spun |
| Housing Material Fabrication | Spun |
| Includes Drive Package | Yes |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Max. Static Pressure | 0.5 in. wc |
| Motor Hp | 83/1000 hp |
| Mount Type | Roof Curb |
| Mounting Location | Roof And Wall |
| Mounting Type | Roof Curb |
| Number Of Speeds | Variable |
| Overall Height | 14 1/4" |
| Overall Width | 17 3/4" |
| Phase | 1 |
| Power Source | Electric Corded |
| Voltage | 115/230V AC |
| Wheel Dia. | 9" |
| Wheel Material | Aluminum |
| Wheel Type | Backward Inclined |
| Maximum Static Pressure | 1/2 in. wc |
| Motor Horsepower | 1/12 hp |
| Nameplate Voltage | 115/230V AC |
| Standards | UL 705 |
| Weight | 30 lbs. |
| Wheel Diameter | 9" |
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CA |
| Model | Item | Price | |
|---|---|---|---|
| ALX135UBT10025 | Belt | €1,980.30 | |
| ALX135UBT10033 | Belt | €2,000.67 | |
| ALX135UBT10050 | Belt | €2,126.22 | |
| ALX150UBT10050 | Belt | €2,090.40 | |
| ALX150UBT10075 | Belt | €2,147.67 | |
| ALX150UBT10100 | Belt | €2,211.96 | |
| ALX150UBT30100M | Belt | €2,055.75 |
