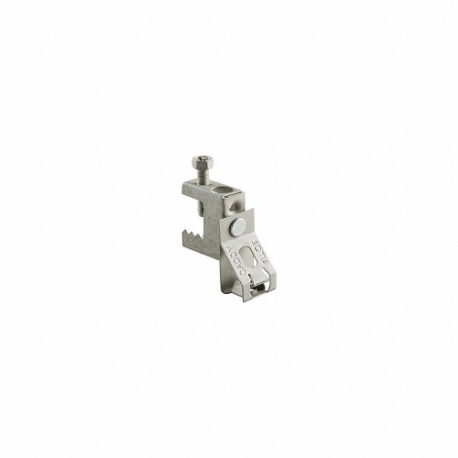

| Item | Beam Clamp |
| Beam Mount Location | Bottom |
| Bolt Material | Steel |
| Features | Prefabricated Assemblies, Works With Slightly Damaged Threads And Minor Burrs On The Threaded Rod |
| Finish | Electro Galvanized |
| For Beam Shape/type | H Beam |
| For Beam Thickness | 3/8 " to 3/4" |
| For Maximum Beam Thickness | 3/4" |
| For Minimum Beam Thickness | 3/8" |
| For Threaded Rod Size | 1/2" |
| Height | 2.1" |
| Includes Locknut | Yes |
| Includes Threaded Rod | Yes |
| Installation Torque | 20 lbs.-in. |
| Length | 2 2/5" |
| Load Capacity | 1100 lbs. |
| Material | Cast Iron |
| Type | C Clamp With Side Hanger |
| Width | 1.3" |
| Beam Clamp Type | C-Clamp With Side Hanger |
| Clamp Height | 2.1" |
| Clamp Length | 2.4" |
| Clamp Material | Cast Iron |
| Clamp Material Finish | Electro-Galvanized |
| Clamp Width | 1.3" |
| Standards | ANSI/MSS-SP-58, TYPE 19, ANSI/MSS-SP-58, TYPE 23, CUL, FM APPROVED, UL LISTED, WW-H-171, TYPE 23 |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
