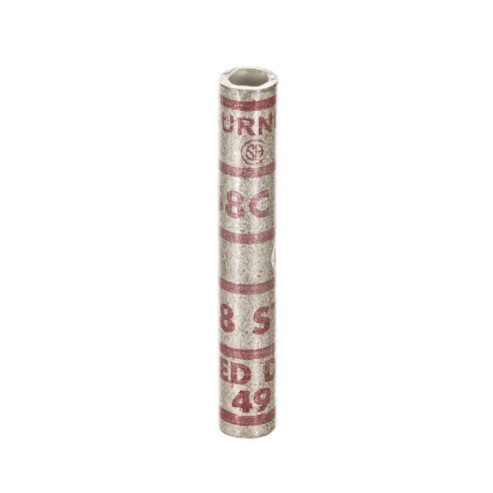

BURNDY YS8C Short Barrel Splice, 1.75 Inch Size, 0.27 Inch Outer Diameter, Copper
Get it by Friday, Jun 13
€3.55 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Short Barrel Splice |
| Barrel Finish | Tin Plated |
| Barrel Outside Diameter | 0.27" |
| Barrel Size | Long |
| Color Code | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Die Code | 49 |
| For Conductor Material | Copper |
| For Wire Type | Stranded |
| Length | 1 3/4" |
| Material | Copper |
| Max. Wire Size | 8 AWG |
| Maximum Conductors | 2 |
| Maximum Wire Insulation Diameter | 0.27" |
| Minimum Wire Size | 8 AWG |
| Number Of Crimps | 2 |
| Outside Dia. | 0.27" |
| Overall Length | 1 3/4" |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Center Conductor Stops, High Pull Out Force, Oil Stop No |
| Strip Length | 7/8" |
| Termination Type | Crimp |
| Voltage Rating | 8/25" |
| Wire Gauge | 8 AWG |
| Barrel Od | 0.27" |
| Compatible Installation Tool Model Number | MD6, MD7-34R, OUR840, PAT81KFT-18V, Y35, Y39, Y46, Y750, Y81KFT, Y81KFTMBH |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV |
| Maximum Wire Size | 8 AWG |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination Style | Crimp |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 0.69 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 0.69 |
| Country of Origin | US |
| Product | Model | Color Code | Length | Material | Max. Voltage | Outside Dia. | Overall Length | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
YS8CLBOX | Red | 1" | - | - | - | - | 8 AWG | €3.35 | RFQ
|
 |
YS2C | Brown | - | Copper | - | - | 2.82" | 2 AWG | €10.35 | |
|
YS4CLBOX | Gray | - | Copper | - | - | 1.75" | 4 AWG | €7.24 | |
|
YS6CLBOX | Blue | - | Copper | - | - | 1.75" | 6 AWG | €6.11 | |
 |
YS4CA1 | Green | 1.97" | - | - | - | 1.97" | 4 AWG | - | RFQ
|
 |
YS27A1 | Ruby | 2.88" | - | - | 1.824" | 2.88" | 3/0 AWG | - | RFQ
|
|
YS25LBOX | Pink | - | - | - | - | - | 1/0 AWG | €11.41 | RFQ
|
