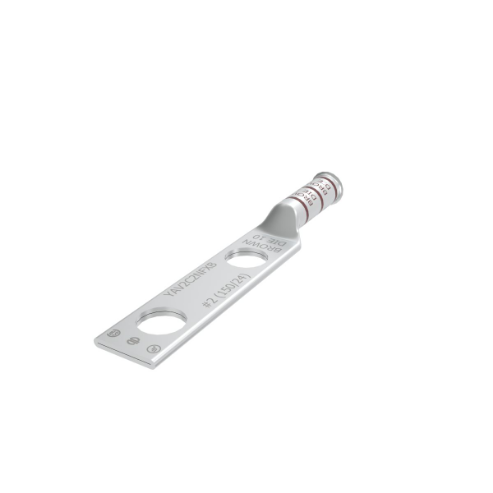

BURNDY YAV2C2NFXB Compression Lug, 1.35 Inch Barrel Length, Brown
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Compression Lug |
| Application | Wire Termination |
| Certification - Csa Approved | Yes |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Color Code | Brown |
| Conductor - Copper Dlo Size | 2 AWG |
| Conductor - Copper Dlo Size Range | 2 AWG |
| Conductor - Copper Flex G Size | "2 AWG" |
| Conductor - Copper Flex G Size Range | 2 AWG |
| Conductor - Copper Flex H Size | "2 AWG" |
| Conductor - Copper Flex H Size Range | 2 AWG |
| Conductor - Copper Flex I Size | "2 AWG" |
| Conductor - Copper Flex I Size Range | 2 AWG |
| Conductor - Copper Flex K Size | "2 AWG" |
| Conductor - Copper Flex K Size Range | 2 AWG |
| Conductor - Copper Flex M Size | "2 AWG" |
| Conductor - Copper Solid Size | 2 AWG |
| Conductor - Copper Str Compact Size | "2 AWG" |
| Conductor - Copper Str Navy Size | 60 |
| Conductor - Copper Str Navy Size Range | 60 (37) Navy |
| Conductor - Copper Str Size | "2 AWG" |
| Conductor - Copper Str Size Range | 2 AWG |
| Conductor - Material | COPPER |
| Conductor Size | 2 AWG |
| Conductor Type | CODE/FLEX |
| Connector Type | LONG BARREL |
| Die Index | 10 |
| Dimension - B Length Fraction | 1-3/8 in |
| Dimension - B Length Inch | 1.35 in |
| Dimension - Bolt Hole Size Inch | 0.52 in |
| Dimension - Bolt Size Fraction | 1/2 |
| Dimension - Bolt Size Inch | 0.5 |
| Dimension - Hole Size Fraction | 1/2 |
| Dimension - Hole Size Inch | 0.56 in |
| Dimension - Hole Size Inch | 0.56 |
| Dimension - Hole Size Mm | 14 mm |
| Dimension - L Length Overall Mm | 121 mm |
| Dimension - Length Overall Inch | 4.76 in |
| Dimension - N Inch | 0.62 in |
| Dimension - Outside Diameter Inch | 0.46 in |
| Dimension - P Inch | 1.65 in |
| Dimension - Pad Width Inch | 0.83 in |
| Dimension - Strip Length Inch | 1-7/16 |
| Dimension - Stud Size Fraction | 1/2 |
| Dimension - Stud Size Inch | 1/2 |
| Dimension - Thread Size | 1/2 |
| Dimension - Z (inch) | 0.64 in |
| Eu Rohs Indicator | Yes |
| Feature - Barrel Style | Belled |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Industry Standard(s) | UL 486A-486B |
| Material | COPPER |
| Physical Attribute - Number Of Holes | 2 |
| Physical Attribute - Tongue Angle | Straight |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Standards - Rohs Compliance Status | CM |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| Ul Listed | Yes |
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
| Wire Size | 2 AWG |
| Ship height (cm) | 1.17 |
| Ship length (cm) | 12.09 |
| Ship width (cm) | 2.11 |
| Country of Origin | US |
