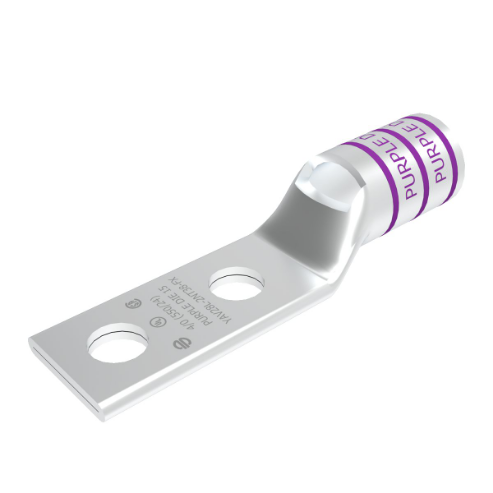

| Item | Two Hole Narrow Tongue Standard Barrel CU Flex Lug |
| Barrel Length | Short |
| Barrel Outside Diameter | 0.77" |
| Barrel Size | Standard |
| Barrel Style | Chamfered, Skived |
| Body Material | Copper |
| Color Code | Purple |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 15 |
| For Conductor Material | Copper |
| For Stud Size | 3/8" |
| For Wire Type | Stranded |
| Hole Center To End | 0.41" |
| Hole Size | 0.39" |
| Hole To Hole Center (in.) | 1" |
| Inspection Hole | Yes |
| Length | 3.43" |
| Length (straight Wireway) | 3.43" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Mount | Bolt |
| Mounting | Bolt |
| Number Of Holes | 2 |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Terminal |
| Stud Size | 3/8" |
| Style | Narrow |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Standard |
| Width | 0.94" |
| Wire Material | Copper |
| Barrel Od | 0.77" |
| For Stranded Copper Wire Size - Minimum | 4/0 AWG |
| For Wire Size | 4/0 AWG |
| Hole Center To Center | 1" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 4/0 AWG |
| Overall Length | 3.43" |
| Overall Width | 0.94" |
| Standards | CSA CERTIFIED, UL 486A-486B, UL LISTED |
| Strip Length | 1 1/16" |
| Tongue Length | 0.84" |
| Tongue Width | 0.94" |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.96 |
| Ship length (cm) | 8.71 |
| Ship width (cm) | 2.39 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Cable Size | Cable Size Code | Color Code | Die Code | Hole Center To End | Length | Peep Hole | Stud Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA34L2NT38FX | 374 kcmil | 350 kcmil | Blue | 19 | 0.41" | 3.88" | No | 3/8" | €129.52 | |
 |
YA38L2NT38FX | 535 kcmil | 500 kcmil | Pink | L99 | 0.5" | 4.36" | Yes | 3/8" | €166.93 | |
|
YAV2CL2NT14FX | 2 AWG | 2 AWG | Brown | 10 | 0.32" | 2.26" | Yes | 1/4" | €41.21 | |
 |
YAV4CL2NT10FX | 4 AWG | 4 AWG | Gray | 8 | 0.25" | 1.96" | Yes | #10" | €34.28 |
