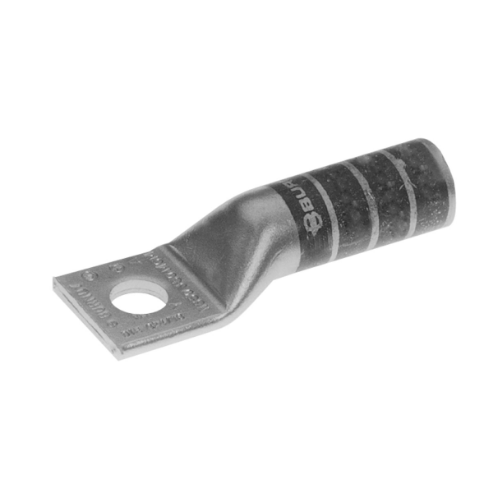

BURNDY YA6CT4 Compression Lug, 1.12 Inch Barrel Length, Blue
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Compression Lug |
| Application | Wire Termination |
| Certification - Csa Approved | Yes |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Color Code | Blue |
| Conductor - Copper Solid Size | 6 AWG |
| Conductor - Copper Solid Size Range | 6 Sol |
| Conductor - Copper Solid Size Range | 6 AWG |
| Conductor - Copper Str Size | 6 AWG |
| Conductor - Copper Str Size Range | 6 AWG |
| Conductor - Material | COPPER |
| Conductor Size | 6 AWG |
| Conductor Type | CODE |
| Connector Type | LONG BARREL |
| Die Index | 7 |
| Dimension - B Length Inch | 1.12 in |
| Dimension - Bolt Hole Size Inch | 0.39 in |
| Dimension - Bolt Size Fraction | 3/8 |
| Dimension - Bolt Size Inch | 0.38 |
| Dimension - D Inch | 0.74 in |
| Dimension - Hole Size Fraction | 3/8 |
| Dimension - Hole Size Inch | 0.40 in |
| Dimension - Hole Size Inch | 0.41 |
| Dimension - Hole Size Mm | 10.4 mm |
| Dimension - L Length Overall Mm | 54 mm |
| Dimension - Length Overall Inch | 2.13 in |
| Dimension - N Inch | 0.38 in |
| Dimension - Outside Diameter Inch | 0.29 in |
| Dimension - Pad Width Inch | 0.58 in |
| Dimension - Strip Length Inch | 1-3/16 |
| Dimension - Stud Size Fraction | 3/8 |
| Dimension - Z (inch) | 0.36 in |
| Eu Rohs Indicator | Yes |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Industry Standard(s) | UL 486A-486B |
| Material | COPPER |
| Physical Attribute - Number Of Holes | 1 |
| Physical Attribute - Tongue Angle | Straight |
| Plated | Y |
| Plating Type | Tin |
| Standards - Rohs Compliance Status | CM |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Terminal |
| Ul Listed | Yes |
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
| Ship height (cm) | 0.74 |
| Ship length (cm) | 5.41 |
| Ship width (cm) | 1.47 |
| Country of Origin | US |
