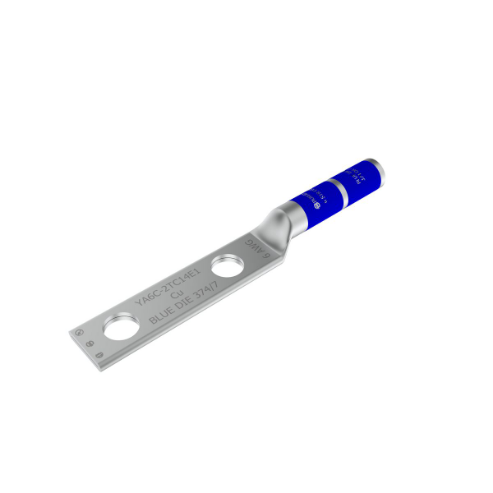

| Item | Two Hole Long Barrel CU Lug |
| Barrel Outside Diameter | 0.29" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 6 AWG |
| Color Code | Blue |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 7 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 6 AWG |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| For Stud Size | 1/4" |
| For Wire Type | Solid, Stranded |
| Hole Center To End | 0.31" |
| Hole Size | 0.27" |
| Hole To Hole Center (in.) | 1" |
| Inspection Hole | No |
| Length | 3.03" |
| Length (straight Wireway) | 3.03" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Number Of Holes | 2 |
| Peep Hole | No |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Corrosion Resistant, Non-Insulated Construction |
| Stud Size | 1/4" |
| Style | Standard |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Standard |
| Width | 0.46" |
| Wire Material | Copper |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.74 |
| Ship length (cm) | 7.7 |
| Ship width (cm) | 1.17 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Cable Size | Cable Size Code | Color Code | Die Code | Hole Center To End | Length | Stud Size | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA6C2TC14 | 6 AWG | 6 AWG | Blue | 7 | 0.31" | 2.66" | 1/4" | 0.46" | €26.72 | |
|
YA6C2TC38 | 6 AWG | 6 AWG | Blue | 7 | 0.41" | 3.22" | 3/8" | 0.59" | €26.06 | |
 |
YA2C2TC38 | 2 AWG | 2 AWG | Brown | 10 | 0.41" | 3.42" | 3/8" | 0.61" | €25.92 | |
 |
YA8C2TC14 | 8 AWG | 8 AWG | Red | 49 | 0.31" | 2.33" | 1/4" | 0.437" | €18.16 | |
|
YA2C2TC14 | 2 AWG | 2 AWG | Brown | 10 | 0.31" | 2.86" | 1/4" | 0.61" | €36.78 | |
 |
YA282TC38 | 4/0 AWG | 4/0 AWG | Purple | 15 | 0.41" | 3.99" | 3/8" | 1.016" | €53.20 | |
|
YA6C2TC14E2 | 6 AWG | 6 AWG | Blue | 7 | 0.31" | 2.78" | 1/4" | 0.46" | €18.44 |
