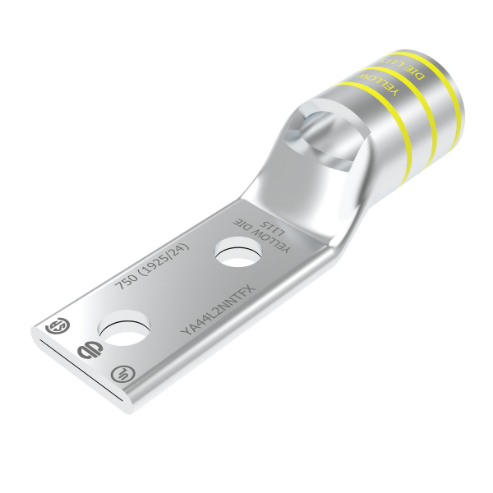

| Item | Two Hole Narrow Tongue Standard Barrel CU Flex Lug |
| Barrel Length | Short |
| Barrel Outside Diameter | 1 1/2" |
| Barrel Size | Standard |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 777 kcmil |
| Cable Size Code | 750 kcmil |
| Color Code | Yellow |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 777 kcmil |
| For Stranded Copper Wire Size - Minimum | 750 kcmil |
| For Stud Size | 1/2" |
| For Wire Type | Stranded |
| Hole Center To End | 0.63" |
| Hole Size | 13/25" |
| Inspection Hole | Yes |
| Length | 5.74" |
| Length (straight Wireway) | 5.74" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Mount | Bolt |
| Mounting | Bolt |
| Number Of Holes | 2 |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Terminal |
| Stud Size | 1/2" |
| Style | Narrow |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Narrow |
| Width | 1.63" |
| Wire Material | Copper |
| Barrel Od | 1 1/2" |
| Die Code | L115 |
| For Wire Size | 750 kcmil |
| Hole Center To Center | 1 3/4" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 777 kcmil |
| Overall Length | 5.74" |
| Overall Width | 1.63" |
| Standards | CSA CERTIFIED, UL 486A-486B, UL LISTED |
| Strip Length | 1 5/8" |
| Tongue Length | 1.28" |
| Tongue Width | 1.63" |
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 14.58 |
| Ship width (cm) | 4.14 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Cable Size | Cable Size Code | Color Code | Die Code | Hole Center To End | Item | Length | Stud Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA26L2NT14 | 2/0 AWG | 2/0 AWG | Black | 13 | 0.25" | Two Hole Narrow Tongue Standard Barrel CU Lug | 2.66" | 1/4" | €46.82 |
