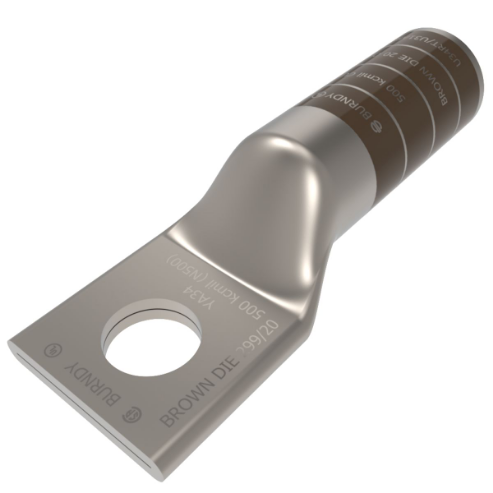

BURNDY YA34N Long Barrel Cu Lug 1 Hole 500 Kcmil
Get it by Monday, Jun 16
€34.89 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | One Hole NEMA Tongue Long Barrel CU Lug |
| Barrel Outside Diameter | 1.06" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 500 kcmil |
| Cable Size Code | 500 kcmil |
| Color Code | Brown |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 500 kcmil |
| For Stranded Copper Wire Size - Minimum | 500 kcmil |
| For Stud Size | 1/2" |
| For Wire Type | Stranded |
| Hole Center To End | 0.63" |
| Hole Size | 14/25" |
| Inspection Hole | No |
| Length | 4.33" |
| Length (straight Wireway) | 4.33" |
| Material | Copper |
| Number Of Holes | 1 |
| Peep Hole | No |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Non-Insulated Construction |
| Stud Size | 1/2" |
| Style | Standard |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Standard |
| Width | 1 14/25" |
| Wire Material | Copper |
| Barrel Od | 1.06" |
| Connection Orientation | Straight |
| Die Code | 20, 299 |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 500 kcmil |
| Overall Length | 4.32" |
| Overall Width | 1 14/25" |
| Standards | CSA CERTIFIED, UL 486A-486B, UL LISTED |
| Strip Length | 2 5/16" |
| Tongue Length | 1.27" |
| Tongue Thickness | 0.23" |
| Tongue Width | 1.55" |
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 10.97 |
| Ship width (cm) | 3.96 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Cable Size | Cable Size Code | Color Code | Die Code | Hole Center To End | Item | Length | Stud Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA6C | 6 AWG | 6 AWG | Blue | 7 | 0.25" | One Hole Long Barrel CU Lug | 1.81" | 1/4" | €8.26 | |
 |
YA28 | 4/0 AWG | 4/0 AWG | Purple | 15 | 0.53" | One Hole Long Barrel CU Lug | 3.26" | 1/2" | €28.21 | |
 |
YA362N | 600 kcmil | 600 kcmil | Green | 22 | 0.63" | Two Hole NEMA Tongue Long Barrel CU Lug | 6.59" | 1/2" | €123.34 | |
 |
YA312N | 350 kcmil | 350 kcmil | Red | 18 | 0.62" | Two Hole NEMA Tongue Long Barrel CU Lug | 5.69" | 1/2" | €54.94 | |
 |
YA262N | 2/0 AWG | 2/0 AWG | Black | 13 | 0.63" | Two Hole NEMA Tongue Long Barrel CU Lug | 4.97" | 1/2" | €32.19 | |
 |
YA2C | 2 AWG | 2 AWG | Brown | 10 | 0.34" | One Hole Long Barrel CU Lug | 2.29" | 5/16" | €8.81 | |
 |
YA26 | 2/0 AWG | 2/0 AWG | Black | 13 | 0.41" | One Hole Long Barrel CU Lug | 2.77" | 3/8" | €11.70 |
