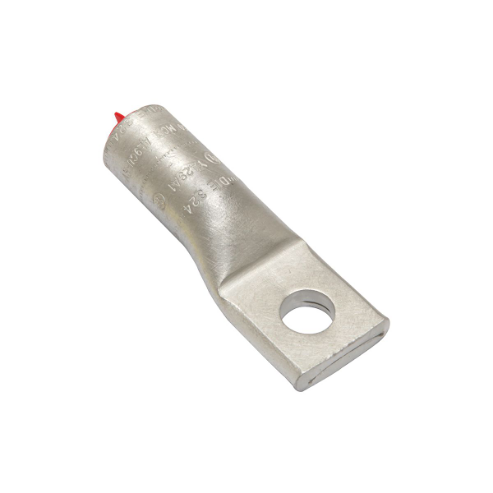

| Item | One Hole AL Compression Lug |
| Barrel Outside Diameter | 23/25" |
| Barrel Size | Standard |
| Barrel Style | Chamfered |
| Body Material | Aluminium |
| Cable Size | 250 kcmil |
| Cable Size Code | 250 kcmil |
| Color Code | Red |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 324 |
| For Conductor Material | Aluminum, Copper |
| For Max. Stranded Copper Wire Size | 250 kcmil |
| For Stranded Aluminum Wire Size | 250 kcmil |
| For Stranded Copper Wire Size - Minimum | 250 kcmil |
| For Stud Size | 1/2" |
| For Wire Type | Solid, Stranded |
| Hole Center To End | 0.63" |
| Hole Size | 14/25" |
| Inspection Hole | No |
| Length | 3.53" |
| Length (straight Wireway) | 3.53" |
| Material | Aluminium |
| Number Of Holes | 1 |
| Peep Hole | No |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Stud Size | 1/2" |
| Style | Standard |
| Terminal Material | Aluminium |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Standard |
| Width | 1.27" |
| Wire Material | Copper |
| Barrel Od | 23/25" |
| Connection Orientation | Straight |
| For Stranded Aluminum Wire Size - Maximum | 250 kcmil |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 250 kcmil |
| Overall Length | 3.53" |
| Overall Width | 1.27" |
| Special Features | Dual-Rated and Designed for Use on Both Aluminum and Copper Conductors, Durable Long Lasting Corrosion Resistance, High-Conductivity, Low Resistance and Ductility |
| Standards | CSA CERTIFIED, UL 486A-486B, UL LISTED |
| Strip Length | 1 5/8" |
| Tongue Length | 1.36" |
| Tongue Thickness | 0.33" |
| Tongue Width | 1.26" |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.34 |
| Ship length (cm) | 8.97 |
| Ship width (cm) | 3.23 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Cable Size | Cable Size Code | Color Code | Die Code | Hole Center To End | Item | Length | Stud Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA28A1 | 4/0 AWG | 4/0 AWG | White | 298 | 0.44" | One Hole AL Compression Lug | 3.26" | 3/8" | €67.69 | |
|
YA26A1 | 2/0 AWG | 2/0 AWG | Olive | 297 | 0.63" | One Hole AL Compression Lug | 3.03" | 1/2" | €42.97 | |
|
YA28A3 | 4/0 AWG | 4/0 AWG | White | 298 | 0.63" | One Hole AL Compression Lug | 3.44" | 1/2" | €63.12 | |
|
YA31A1 | 350 kcmil | 350 kcmil | Brown | 299 | 0.63" | One Hole AL Compression Lug | 4.33" | 1/2" | €78.14 | |
|
YA2CA3 | 2 AWG | 2 AWG | Pink | 348 | 0.44" | One Hole AL Compression Lug | 2.56" | 3/8" | €12.52 | |
 |
YA25A3 | 1/0 AWG | 1/0 AWG | Tan | 296 | 0.63" | One Hole AL Compression Lug | 2.67" | 3/8" | €32.00 | |
 |
YA26A6 | 2/0 AWG | 2/0 AWG | Olive | 297 | 0.44" | One Hole AL Compression Lug | 2.79" | 3/8" | €41.86 |
