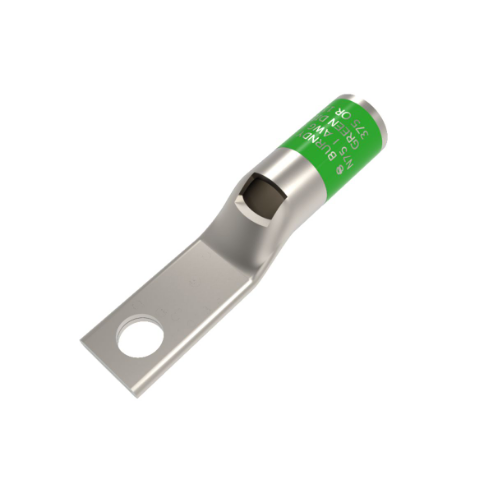

| Item | One Hole Narrow Tongue Standard Barrel CU Lug |
| Barrel Length | Short |
| Barrel Outside Diameter | 0.46" |
| Barrel Size | Standard |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 1 AWG |
| Color Code | Green |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 11 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 1 AWG |
| For Stranded Copper Wire Size - Minimum | 1 AWG |
| For Stud Size | 1/4" |
| For Wire Type | Stranded |
| Hole Center To End | 1/4" |
| Hole Size | 0.27" |
| Inspection Hole | Yes |
| Length | 2.23" |
| Length (straight Wireway) | 2.23" |
| Material | Copper |
| Mount | Bolt |
| Mounting | Bolt |
| Number Of Holes | 1 |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Stud Size | 1/4" |
| Style | Narrow |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Standard |
| Width | 1/2" |
| Wire Material | Copper |
| Barrel Od | 0.46" |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 1 AWG |
| Overall Length | 2.23" |
| Overall Width | 1/2" |
| Special Features | Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv |
| Standards | CSA CERTIFIED, UL 486A-486B, UL LISTED |
| Strip Length | 15/16" |
| Tongue Length | 0.94" |
| Tongue Thickness | 0.1" |
| Tongue Width | 1/2" |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.17 |
| Ship length (cm) | 5.66 |
| Ship width (cm) | 1.27 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Cable Size | Cable Size Code | Color Code | Die Code | Hole Center To End | Length | Peep Hole | Stud Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA6CLNT6 | 6 AWG | 6 AWG | Blue | 7 | 0.19" | 1.17" | Yes | #6" | €23.34 | |
 |
YA8CLNT6 | 8 AWG | 8 AWG | Red | 49 | 0.19" | 1.09" | Yes | #6" | €23.44 | |
 |
YA26LNT516 | 2/0 AWG | 2/0 AWG | Black | 13 | 0.33" | 2.62" | No | 5/16" | €28.91 | |
 |
YA2CLNT14 | 2 AWG | 2 AWG | Brown | 10 | 0.25" | 1.8" | Yes | 1/4" | €12.49 | |
 |
YA28LNT38 | 4/0 AWG | 4/0 AWG | Purple | 15 | 0.41" | 2.67" | Yes | 3/8" | €42.77 | |
 |
YA31LNT38 | 350 kcmil | 350 kcmil | Red | 18 | 0.41" | 3.31" | Yes | 3/8" | €59.72 |
