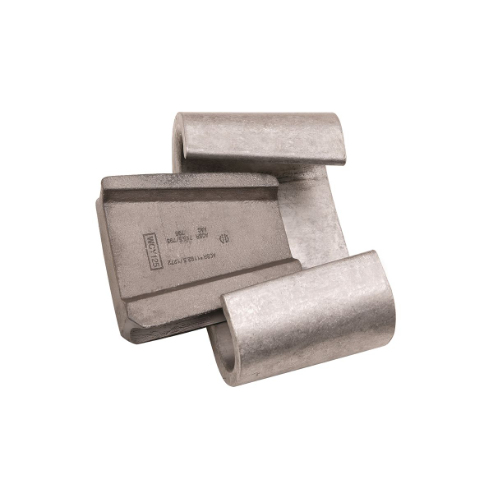

BURNDY WCY89 Wejtap Connector, 954 to 795 kcmil Run to Tap Size
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Wejtap Connector |
| Application | For use in tap applications using large run and tap conductor sizes |
| Certification - Csa Approved | No |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Conductor - Acsr Str Run | 556.5 (24/7) Parakeet kcmil;556.5 (26/7) Dove kcmil;556.5 (30/7) Eagle kcmil;605 (24/7) Peacock kcmil;605 (26/7) Squab kcmil;605 (30/19) Teal kcmil;636 (24/7) Rook kcmil;636 (26/7) Grosbeak kcmil;636 (30/19) Egret kcmil;666.6 (24/7) Flamingo kcmil;715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil;795 (30/19) Mallard kcmil;874.5 (54/7) Crane kcmil;900 (54/7) Canary kcmil;954 (45/7) Rail kcmil;954 |
| Conductor - Acsr Str Run Range | 556.5 (24/7) Parakeet kcmil-1033.5 (54/7) Curlew kcmil |
| Conductor - Acsr Str Tap | 556.5 (26/7) Dove kcmil;556.5 (30/7) Eagle kcmil;605 (24/7) Peacock kcmil;605 (26/7) Squab kcmil;605 (30/19) Teal kcmil;636 (24/7) Rook kcmil;636 (26/7) Grosbeak kcmil;636 (30/19) Egret kcmil;666.6 (24/7) Flamingo kcmil;715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil;795 (30/19) Mallard kcmil;874.5 (54/7) Crane kcmil;900 (54/7) Canary kcmil;954 (45/7) Rail kcmil;954 (54/7) Cardinal kcmil |
| Conductor - Acsr Str Tap Range | 556.5 (26/7) Dove kcmil-954 (54/7) Cardinal kcmil |
| Conductor - Al Str Run | 600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil;954 kcmil;1000 kcmil |
| Conductor - Al Str Run Range | 600 kcmil-1000 kcmil |
| Conductor - Al Str Tap | 650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil;954 kcmil;1000 kcmil |
| Conductor - Al Str Tap Range | 650 kcmil-1000 kcmil |
| Connector Type | Tap |
| Dimension - F Width Center To Center Inch | 3.5 in |
| Dimension - G Inch | 1.97 in |
| Eu Rohs Indicator | Yes |
| Material | Aluminum |
| Standards - Rohs Compliance Status | CM |
| Trade Name | WEJTAP™ |
| Type | Wejtap Connector |
| Ul Listed | No |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
