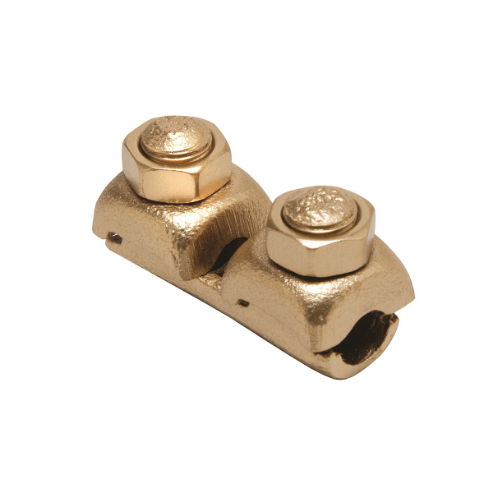

| Item | Splice/Reducer |
| Body Material | Copper |
| Compatible With Product Type | Copper Cable |
| Connector Type | Splice/Reducer |
| Contact Finish | Unplated |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size | 1 AWG |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| For Stud Size | Not Applicable |
| Head Type | Hex |
| Hole Dia. | Not Applicable |
| Hole Spacing | Not Applicable |
| Length | 1.94" |
| Length (straight Wireway) | 1.94" |
| Material | Copper |
| Max. Conductor Size | 1 AWG |
| Min. Conductor Size | 4 AWG |
| No. Of Conductors | 2 |
| Number Of Conductors | 2 |
| Overall Depth | 11/16" |
| Special Features | Compact Easy To Tape Installation, One-Wrench Installation |
| Terminal Material | Copper |
| Type | Commercial |
| Width | 1.063" |
| For Stranded Copper Wire Size - Maximum | 1 AWG |
| Head Style | Hex |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Number Of Terminations | 2 |
| Overall Length | 1.94" |
| Overall Width | 1.06" |
| Standards | UL LISTED |
| Torque | 150 lbs.-in. |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 4.93 |
| Ship width (cm) | 1.75 |
| HS code | 8536904000 |
| Country of Origin | US |
