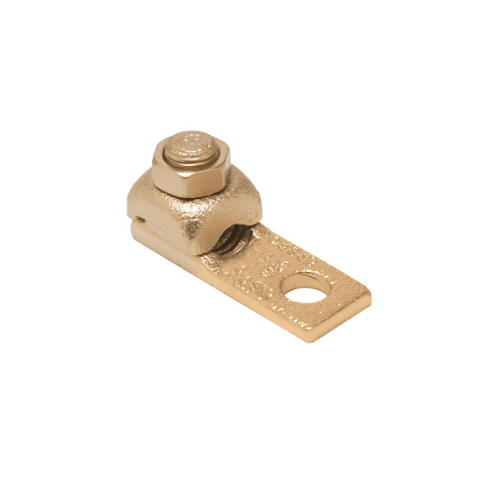

BURNDY QB26 Compression Lug, 3/8 Inch Size
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Compression Lug |
| Application | For Joining A Range Of Copper Cable At Right Angles To Terminal Blocks |
| Certification - Csa Approved | No |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Conductor - Copper Str Size | 1/0 ;2/0 AWG |
| Conductor - Copper Str Size Range | 1/0 -2/0 AWG |
| Conductor Size | 1/0-20 AWG |
| Conductor Type | CU C Str-Size |
| Connector Type | Right Angle |
| Dimension - B Length Fraction | 47/50 in |
| Dimension - B Length Inch | 0.94 in |
| Dimension - Bolt Size Fraction | 3/8 |
| Dimension - D Inch | 1.00 in |
| Dimension - Height Fraction | 1-1/8 |
| Dimension - Height Inch | 1.13 in |
| Dimension - Hole Size Fraction | 13/32 |
| Dimension - Hole Size Inch | 0.41 in |
| Dimension - Hole Size Mm | 10 mm |
| Dimension - L Length Overall Mm | 46 mm |
| Dimension - Length Overall Inch | 1.81 in |
| Dimension - N Inch | 0.44 in |
| Dimension - Pad Width Fraction | 13/16 in |
| Dimension - Pad Width Inch | 0.81 in |
| Dimension - Stud Size Fraction | 3/8 |
| Dimension - Stud Size Inch | 3/8 |
| Dimension - Width Inch | 0.81 in |
| Dimension - Width Mm | 21 mm |
| Eu Rohs Indicator | Yes |
| Industry Standard(s) | UL 486A-486B |
| Installation Torque Recommended In-lb | 180 LBS/in |
| Material | Copper |
| Number Of Conductors | 1 |
| Physical Attribute - Number Of Clamping Elements | 1 |
| Physical Attribute - Number Of Holes | 1 |
| Physical Attribute - Number Of Screws | 1 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | N |
| Plating Type | Unplated |
| Standards - Industry Standards Met | UL 486A-486B |
| Standards - Rohs Compliance Status | EX |
| Trade Name | QIKLUG™ |
| Type | Bolted Lugs & Terminals |
| Ul Listed | Yes |
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 4.6 |
| Ship width (cm) | 2.06 |
| Country of Origin | US |
| Product | Model | Item | Price | |
|---|---|---|---|---|
|
QB28 | Side Entrance Terminal | €201.56 |
