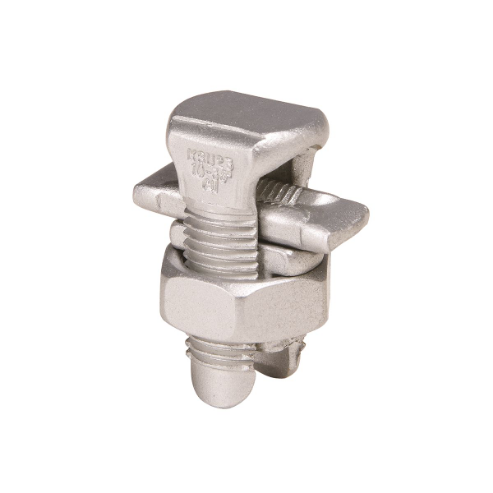

| Item | Universal Split Bolt Connector, Cu/Al |
| Body Material | Copper |
| Compatible With | Split Bolt Covers |
| Compatible With Series | Servit |
| Connects | Copper To Aluminium Wire |
| Finish | Tin Plated |
| For Conductor Material | Aluminum, Copper, Steel |
| For Minimum Run Wire Size | 2 AWG |
| For Minimum Tap Wire Size | 10 AWG |
| Head Style | Square Head |
| Hex Nut Size | 0.93" |
| Material | Copper Alloy |
| Min. Tap Conductor W/1 Max. Main (awg) | 16 AWG |
| Overall Length | 1.77" |
| Pressure Bar Material | Copper |
| Rohs Compliant | Yes |
| Special Features | High Strength Copper Alloy Servit With Spacer, Spacer Separates Dissimilar Conductors And Provides Long Contact Length That Prevents High Pressure Point Contacts Between Run And Tap Conductors |
| Width | 0.7" |
| Wire Size Range With Equal Main And Tap | 2 AWG to 1/0 AWG |
| Body Finish | Tin Plated |
| Compatible Grainger Part Number | 22C088 |
| Compatible Manufacturer Model Number | SC2/0 |
| Compatible With Product Type | Split Bolt Covers |
| For Maximum Run Wire Size | 1/0 AWG |
| For Maximum Tap Wire Size | 1/0 AWG |
| Maximum Voltage | 35000V |
| Minimum Tap Conductor W/1 Maximum Main (awg) | 10 AWG |
| Overall Width | 0.7" |
| Standards | CSA CERTIFIED, UL LISTED 486A COPPER ONLY |
| Torque | 385 lbs.-in. |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 4.5 |
| Ship width (cm) | 1.78 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Item | Wire Range W/equal Main And Tap (awg) | Price | |
|---|---|---|---|---|---|
 |
KSU23 | Universal Split Bolt Connector, Cu/Al | 2 str to 8 str | €34.82 | |
|
KSU26 | Universal Split Bolt Connector, Cu/Al | 2/0 str to 1 str | €27.31 | |
|
KSU20 | Universal Split Bolt Connector, Cu/Al | 4 sol to 10 sol | €8.83 | |
|
KSU22 | Universal Split Bolt Connector, Cu/Al | 2 sol to 10 sol | €12.35 | |
|
KSU17 | Universal Split Bolt Connector, Cu/Al | 6 sol to 12 sol | €18.09 | |
 |
KSU29 | Universal Split Bolt Connector, Cu/Al | 250 kcmil to 1 str | €57.55 | |
|
KSU31 | Universal Split Bolt Connector, Cu/Al | 350 kcmil to 4/0 str | €86.55 |
