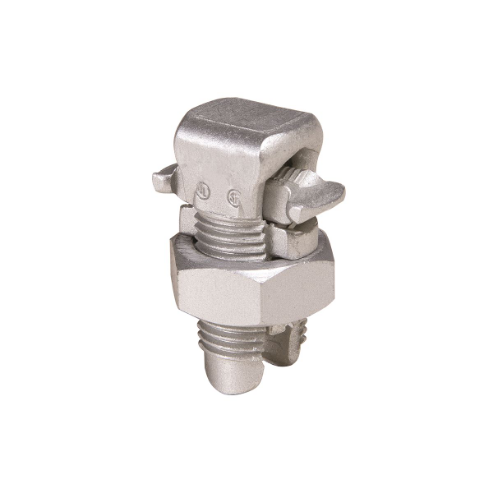

BURNDY KSA4/0 Split Bolt Connector For Cu/al 6 Stranded
Get it by Tuesday, Jun 17
€39.32 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Split Bolt Connector for Cu/Al, Tin Plated |
| Body Material | Aluminum |
| Connects | Copper To Aluminium Wire |
| Finish | Tin Plated |
| For Conductor Material | Aluminum, Copper |
| For Minimum Run Wire Size | 2 AWG |
| Head Style | Square Head |
| Hex Nut Size | 1.49" |
| Material | Aluminum |
| Min. Tap Conductor W/1 Max. Main (awg) | 6 AWG |
| Overall Length | 2 13/25" |
| Pressure Bar Material | Copper |
| Rohs Compliant | Yes |
| Special Features | Facilitates Piercing The Aluminum Conductor Surface Oxides, No Scratch Brushing Required, No Oxide Inhibitor Required, Orients The Conductor, Provides Maximum Pressure And Assures A Secure Connection Of Run And Tap Conductors |
| Width | 1.13" |
| Wire Range W/equal Main And Tap (awg) | 6 AWG |
| Wire Size Range With Equal Main And Tap | 6 AWG |
| Body Finish | Tin Plated |
| For Maximum Run Wire Size | 4/0 AWG |
| For Maximum Tap Wire Size | 4/0 AWG |
| For Minimum Tap Wire Size | 4 AWG, 6 AWG |
| Maximum Voltage | 35000V |
| Minimum Tap Conductor W/1 Maximum Main (awg) | 6 AWG |
| Overall Width | 1.13" |
| Standards | CSA CERTIFIED, UL 468A, UL 486B, UL 486D |
| Torque | 500 lbs.-in. |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.97 |
| Ship length (cm) | 6.4 |
| Ship width (cm) | 2.87 |
| HS code | 8535908020 |
| Country of Origin | US |
