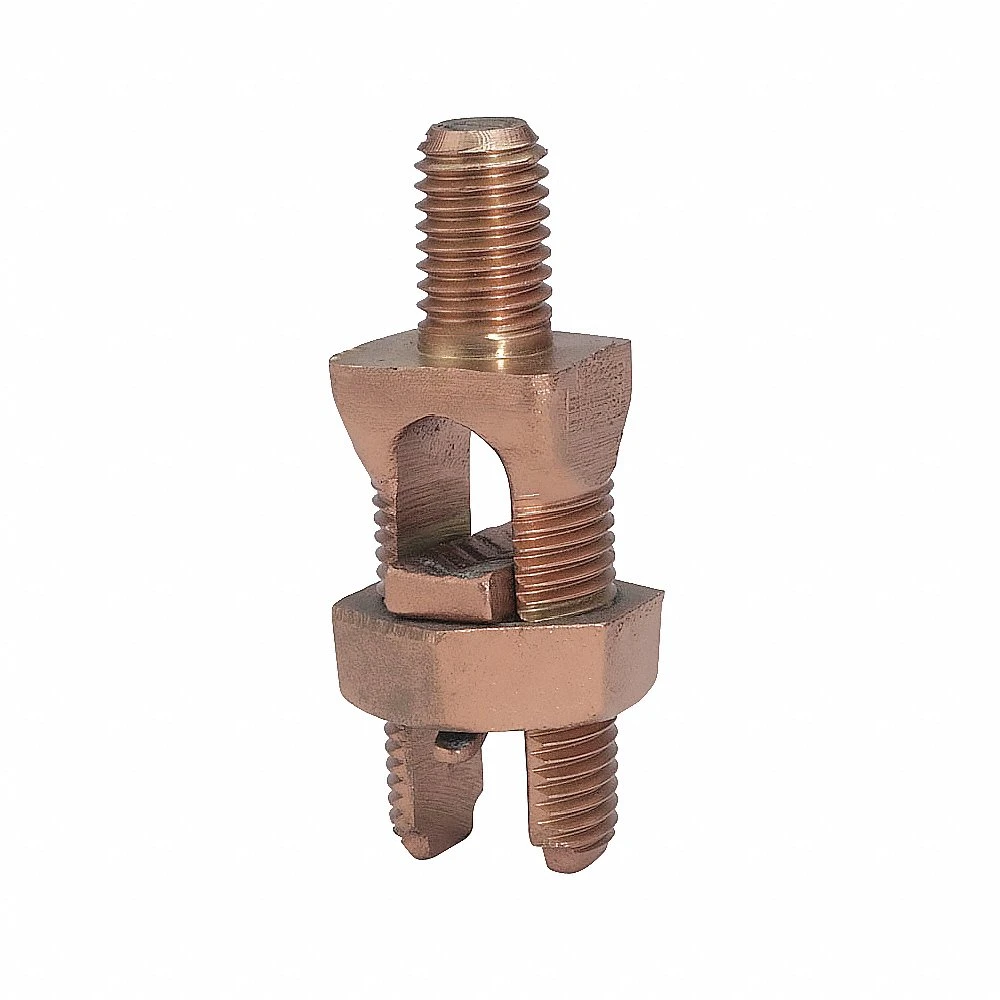

BURNDY KC20 Copper Cable to Post/Flat 10 sol
Get it by Tuesday, Jun 17
€30.70 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Copper Cable to Steel/Fence Post/Flat |
| Body Material | Bronze |
| Conductor Size | 10 AWG to 4 AWG |
| Conductor Type | Run |
| Connector Material | Leaded Bronze Alloy |
| Connector Type | Mechanical |
| Length - Grounding Stud | 13/32" |
| Material | Bronze |
| Material - Grounding Connector | Leaded Bronze Alloy |
| Material Of Construction | Leaded Bronze Alloy |
| Number Of Wires | 1 |
| Number Of Wires - Grounding | 1 |
| Overall Length | 1 7/16" |
| Stud Length | 0.406" |
| Terminal Material | Bronze, Leaded, Commercial |
| Thread Size | 5/16"-18 |
| Type - Grounding Connector | Mechanical |
| Width | 1/2" |
| Wire Range W/equal Main And Tap (awg) | 10 AWG to 4 AWG |
| Wire Size Range With Equal Main And Tap | 10 AWG to 4 AWG |
| Grounding Wire Size | 10 AWG to 4 AWG, 10 AWG to 5 AWG |
| Installation Torque | 180 lbs.-in. |
| Number Of Grounding Wires | 1 |
| Overall Width | 1/2" |
| Series | K2C, KC |
| Standards | UL LISTED, UL LISTED-DIRECT BURIAL, UL467 |
| Ship height (cm) | 2.18 |
| Ship length (cm) | 3.61 |
| Ship width (cm) | 2.2 |
| HS code | 8535908020 |
| Country of Origin | US |
| Model | Body Width | Conductor Size | Height | Item | Overall Length | Stud Length | Thread Size | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KC23 | - | 2 str to 10 sol | - | Copper Cable to Steel/Fence Post/Flat | - | 15/32" | 3/8-16 | - | €51.32 | |
| KC26B1 | - | 2/0 str to 2 str | - | Copper Cable to Steel/Fence Post/Flat | - | 1 1/16" | 1/2-13 | - | €99.74 | |
| KC23B1 | - | 8/2 str to 10/1 sol | - | Copper Cable to Steel/Fence Post/Flat | - | 31/32" | 3/8-16 | - | €103.90 | |
| KC25 | - | 2/0 sol to 2 sol | - | Copper Cable to Steel/Fence Post/Flat | - | 9/16" | 1/2-13 | - | €72.54 | |
| KC28 | - | 4/0 str to 1 str | - | Copper Cable to Steel/Fence Post/Flat | - | 3/4" | 5/8-11 | - | €147.81 | |
| KC28B1 | - | 4/0 str to 1 str | - | Copper Cable to Steel/Fence Post/Flat | - | 1.25" | 5/8-11 | - | €155.22 | |
| KC17 | - | 6 sol to 10 sol | - | Copper Cable to Steel/Fence Post/Flat | - | 3/8" | 1/4-20 | - | €28.22 |
