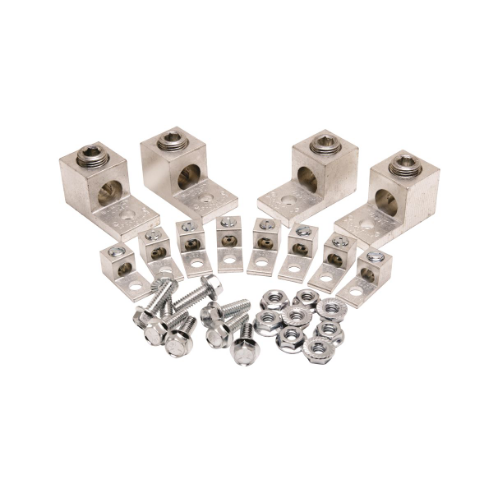

| Item | Transformer Lug Kit |
| Body Material | Aluminum |
| Compatible With Product Type | Aluminum Cable, Copper Cable |
| Connection Orientation | Dual Rated Lug |
| Connector Type | Transformer Lug Kit |
| Contact Finish | Tin |
| For Conductor Material | Aluminum, Copper |
| For Stud Size | 5/16" |
| Head Type | Hex |
| Hole Dia. | 0.33" |
| Includes | (12) Ka29U, (16) 1/4-20 In Hex Head Nut, (8) 1/4-20 X 2 In Hex Head Bolt, (8) 1/4-20 X 3/4 In, Captive To Nut |
| Material | Aluminium |
| Max. Conductor Size | 250 kcmil |
| Min. Conductor Size | 6 AWG |
| No. Of Conductors | 1 |
| Number Of Conductors | 1 |
| Overall Depth | 7" |
| Special Features | Compensates For Dissimilar Metal Expansion And Contraction, Plated Steel Cap Screws, Provide Low Contact Resistance |
| Terminal Material | Aluminium |
| Type | Commercial |
| Head Style | Hex |
| Hole Diameter | 0.33" |
| Overall Length | 7" |
| Overall Width | 1 1/4" |
| Stud Size | 5/16" |
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 3.18 |
| HS code | 8535908040 |
| Country of Origin | MX |
