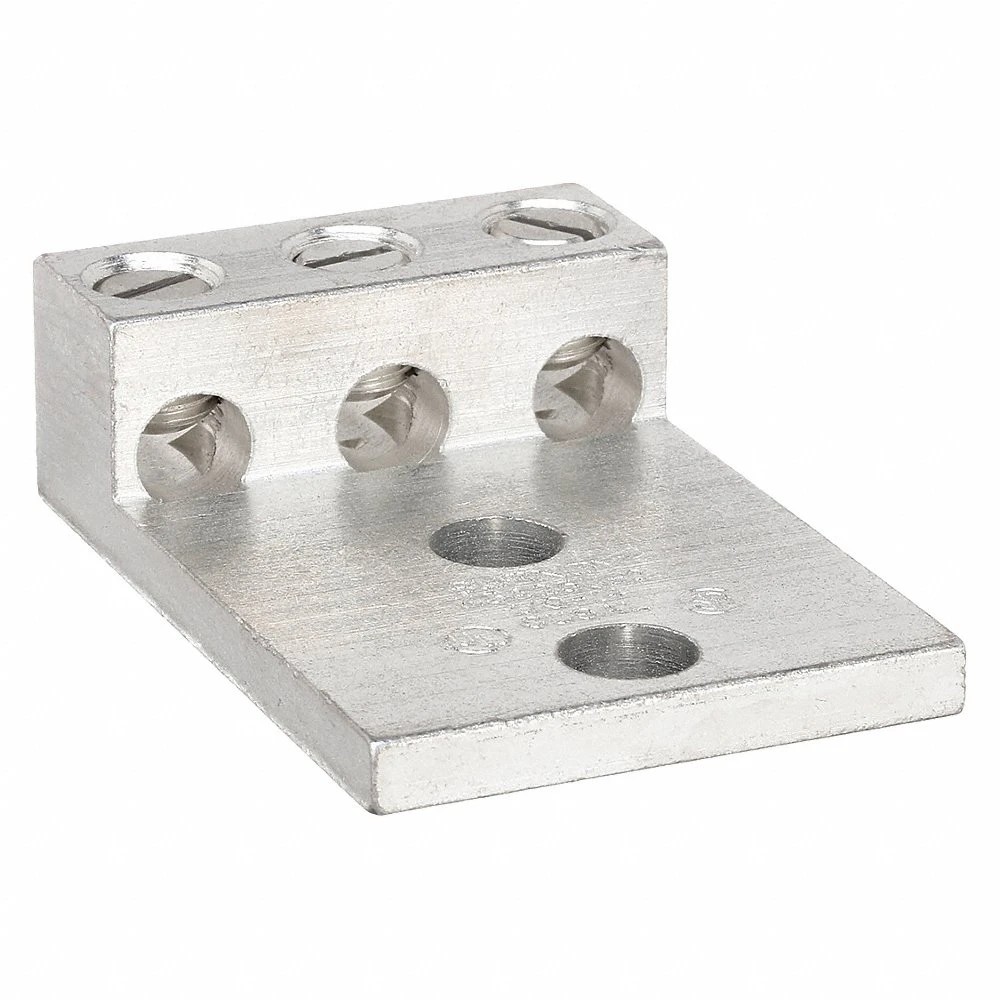

| Item | Three Conductor Lug |
| Body Material | Aluminum |
| Compatible With Product Type | Aluminum Cable, Copper Cable |
| Connection Orientation | Dual Rated Lug |
| Connector Type | Terminal |
| Contact Finish | Tin |
| Finish | Tin Coated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| For Stud Size | 3/8" |
| Head Type | Slotted |
| Hole Dia. | 0.45" |
| Hole Spacing | 1 3/4" |
| Length | 2.91" |
| Length (straight Wireway) | 2.91" |
| Material | Aluminium |
| Min. Conductor Size | 14 AWG |
| No. Of Conductors | 3 |
| Number Of Conductors | 3 |
| Number Of Holes | 2 |
| Overall Depth | 2" |
| Special Features | Providing Low Contact Resistance |
| Stud Size | 3/8" |
| Terminal Material | Aluminium |
| Tongue Width | 1.94" |
| Type | Commercial |
| Width | 1.94" |
| Wire Material | Copper |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Head Style | Slotted |
| Hole Diameter | 0.45" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Number Of Terminations | 3 |
| Overall Length | 2.19" |
| Overall Width | 22/25" |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Length | 2.09" |
| Tongue Thickness | 0.25" |
| Torque | 50 lbs.-in. |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 4.17 |
| HS code | 8535908040 |
| Country of Origin | US |
| Product | Model | Bolt Hole Size | Height | Item | Length | Max. Conductor Size | Min. Conductor Size | Min. Voltage | Number Of Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
K3A2U2 | - | - | Three Conductor Lug | 2.19" | 2 AWG | 14 AWG | - | - | €85.02 | |
 |
K3A29U2N | - | - | Three Conductor Lug | 4" | 250 kcmil | 6 AWG | - | - | €201.92 | |
|
K3A26U2N | - | - | Three Conductor Lug | 3.75" | 2/0 AWG | 14 AWG | - | - | €150.20 | |
|
K3A27U2N | 42 - 45" | 7.08" | Terminal | - | - | - | - | 2 | - | RFQ
|
 |
K3A29U4N | 42 - 45" | 7.87" | Terminal | - | - | - | - | 4 | - | RFQ
|
 |
KK3A40U4N | 39 - 42" | Proprietary Laminated Nonwoven | Terminal | - | - | - | - | 4 | - | RFQ
|
 |
KK3A40U2N | 39 - 42" | Proprietary Laminated Nonwoven | Terminal | - | - | - | - | 2 | - | RFQ
|
