BURNDY K2C23B1 Copper Cable to Post/Flat 10 sol
Get it by Tuesday, Jun 17
€56.64 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Copper Cable to Steel/Fence Post/Flat |
| Application | For Direct Burial Applications And Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar |
| Body Material | Bronze Alloy |
| Body Width | 0.62" |
| Conductor Copper Str Size | 8 AWG |
| Conductor Size | 10 AWG to 1 AWG |
| Conductor Type | Run |
| Connector Material | Leaded Bronze Alloy |
| Connector Type | Mechanical |
| Dimension - B Length Inch | 0.97" |
| Dimension - D Inch | 1 3/25" |
| Dimension - Height Inch | 1.05" |
| Dimension - L Length Overall Mm | 63 mm |
| Dimension - Length Overall Inch | 2.47" |
| Dimension - Nut Width Inch | 0.81" |
| Dimension - P Inch | 8/25" |
| Dimension - Threads Per Inch | 16 |
| Length - Grounding Stud | 31/32" |
| Material | Bronze |
| Material - Grounding Connector | Leaded Bronze Alloy |
| Material Of Construction | Leaded Bronze Alloy |
| Number Of Wires | 1 |
| Number Of Wires - Grounding | 1 |
| Overall Length | 2 1/2" |
| Plating Type | Unplated |
| Stud Length | 0.969" |
| Terminal Material | Bronze Alloy, Leaded |
| Thread Size | 3/8"-16 |
| Type - Grounding Connector | Mechanical |
| Width | 5/8" |
| Wire Range W/equal Main And Tap (awg) | 10 AWG to 1 AWG |
| Wire Size Range With Equal Main And Tap | 10 AWG to 1 AWG |
| Grounding Wire Size | 10 AWG to 1 AWG, 8 AWG to 2 AWG |
| Installation Torque | 280 lbs.-in. |
| Number Of Grounding Wires | 1 |
| Overall Width | 5/8" |
| Series | K2C, KC |
| Standards | UL LISTED, UL LISTED-DIRECT BURIAL, UL467 |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.67 |
| Ship length (cm) | 6.27 |
| Ship width (cm) | 1.59 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Body Width | Conductor Size | Height | Item | Overall Length | Stud Length | Thread Size | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

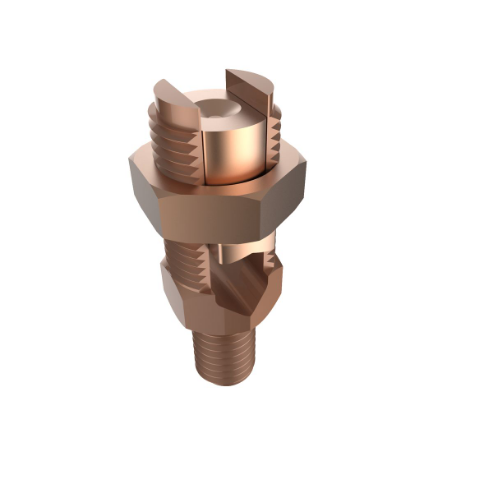

K2C25 | - | 2/0 sol to 2 sol | - | Copper Cable to Steel/Fence Post/Flat | - | 9/16" | 1/2-13 | - | €76.37 | |
|
K2C26B1 | - | 3/0 sol to 2 sol | - | Copper Cable to Steel/Fence Post/Flat | - | 1 1/16" | 1/2-13 | - | €105.10 | |
|
K2C26 | - | 3/0 sol to 2 sol | - | Copper Cable to Steel/Fence Post/Flat | - | 17/32" | 1/2-13 | - | €218.37 | |
|
K2C20 | - | 4 sol to 10 sol | - | Copper Cable to Steel/Fence Post/Flat | - | 13/32" | 5/16-18 | - | €69.06 | |
|
K2C23 | - | 1 sol to 10 sol | - | Copper Cable to Steel/Fence Post/Flat | - | 15/32" | 3/8-16 | - | €53.90 | |
 |
K2C28B1 | - | 4/0 str to 1 str | - | Copper Cable to Steel/Fence Post/Flat | - | 1.25" | 5/8-11 | - | €170.22 | |
 |
K2C22B1 | - | 2 sol to 10 sol | - | Copper Cable to Steel/Fence Post/Flat | - | 31/32" | 3/8-16 | - | €110.40 |
