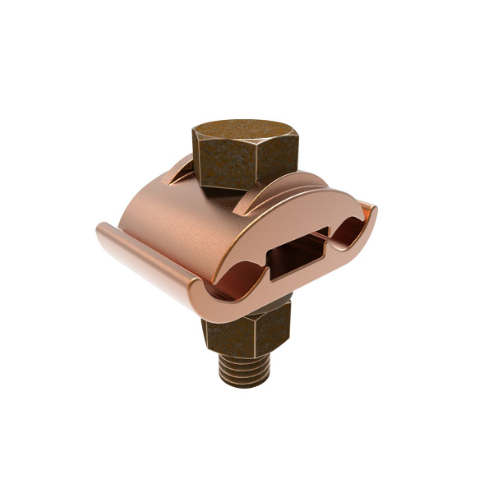

BURNDY GC2626 Ground Connector 4AWG 1.74In
Get it by Tuesday, Jun 17
€88.12 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Ground Connector |
| Body Material | Copper Alloy |
| Certification | No , Yes |
| Conductor Copper Str Size | 4 AWG |
| Conductor Size | 4 AWG to 2/0 AWG |
| Dimension - Height Inch | 1.74" |
| Dimension - L Length Overall Mm | 25 mm |
| Dimension - Length Overall Inch | 1" |
| Dimensions | 1" x 1.57" x 1.74" |
| For Use With | Copper Conductors, Flat Bar |
| Length | 1.74" |
| Material | Copper , Copper Alloy |
| Min. Conductor Size | 4 AWG |
| Number Of Wires | 2 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | N |
| Screw Type | Hexagonal |
| Terminal Material | Copper |
| Type | Commercial |
| Type - Grounding Connector | Mechanical |
| Width | 1 3/25" |
| Accessory Type | Grounding Connector |
| Description/special Features | Direct Burial |
| For Maximum Ground Conductor Wire Size | 2/0 AWG STR |
| For Minimum Ground Conductor Wire Size | 4 AWG SOL |
| Grounding Wire Size | 4 AWG to 2/0 AWG, 4 AWG to 2/0 AWG |
| Grounding Wires Connected To | 1/4" Bar |
| Number Of Grounding Wires | 2 |
| Overall Height | 1 3/4" |
| Overall Length | 1" |
| Overall Width | 1 9/16" |
| Package Quantity | 1 |
| Standards | UL LISTED DIRECT BURIAL, UL467 |
| Torque | 240 lbs.-in. |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 4.42 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 3.99 |
| HS code | 8535908060 |
| Country of Origin | US |
