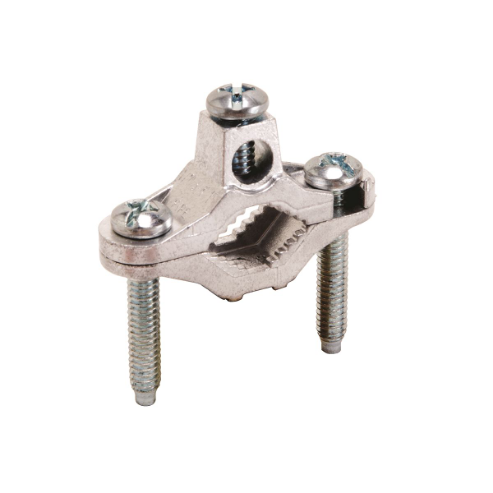

| Item | Ground Connector |
| Body Material | Zinc |
| Conductor Size | 2 AWG to 10 AWG |
| For Maximum Pipe Size | 1" |
| For Min. Pipe Size | 1/2" |
| For Use With | Copper Conductor, Water Pipes |
| Length | 2 1/4" |
| Material | Die Cast Zinc , Zinc |
| Max. Conductor Size | 2 AWG |
| Min. Conductor Size | 10 AWG |
| Number Of Wires | 1 |
| Rod Dia. | 1/2" to 1" |
| Terminal Material | Zinc, Cast |
| Type | Commercial |
| Type - Grounding Connector | Mechanical |
| Width | 1 14/25" |
| Accessory Type | Ground Clamp |
| Description/special Features | Zinc Cast |
| For Maximum Ground Conductor Wire Size | 2 AWG STR |
| For Minimum Ground Conductor Wire Size | 10 AWG SOL |
| For Minimum Pipe Size | 1/2" |
| Grounding Wire Size | 10 AWG to 2 AWG |
| Grounding Wires Connected To | 1/2" to 1" Pipe |
| Number Of Grounding Wires | 1 |
| Overall Height | 1 9/16" |
| Overall Length | 2 1/4" |
| Overall Width | 5/8" |
| Package Quantity | 1 |
| Standards | UL LISTED, UL467 |
| Torque | 50 lbs.-in. |
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 3.96 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 1.6 |
| HS code | 8535908060 |
| Country of Origin | ID |
| Product | Model | Price | |
|---|---|---|---|
 |
GCB63T13G1 | - | RFQ
|
 |
GQ291 | - | RFQ
|
