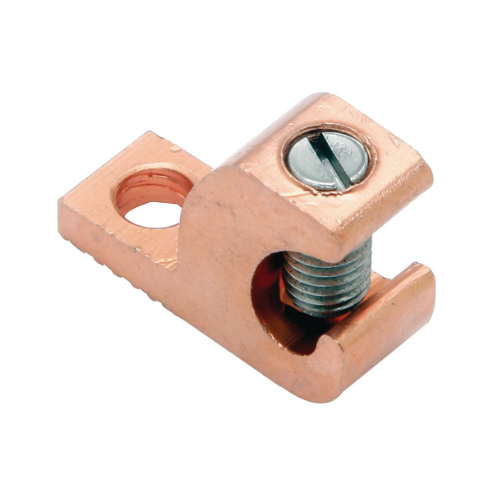

BURNDY CL501 Ground Terminal connector 14AWG - Pack of 10
Get it by Tuesday, Jun 17
€79.73 /pack
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Ground Terminal Connector |
| Body Material | Copper |
| Compatible With Product Type | Grounding Equipments |
| Connector Type | Lay In Lug |
| Contact Finish | Unplated |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size | 4 AWG |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Head Type | Slotted |
| Hole Dia. | 0.22" |
| Hole Spacing | Not Applicable |
| Length | 1.13" |
| Length (straight Wireway) | 1.13" |
| Material | Copper |
| Max. Conductor Size | 4 AWG |
| Min. Conductor Size | 14 AWG |
| Mount | #10 |
| No. Of Conductors | 1 |
| No. Of Holes | 1 |
| Number Of Conductors | 1 |
| Number Of Holes | 1 |
| Overall Depth | 3/8" |
| Screw Material | Stainless Steel |
| Special Features | Direct Burial Applications In Earth Or Concrete, Open Faced Design |
| Stud Size | #10 |
| Terminal Material | Copper |
| Tongue Width | 0.38" |
| Type | Commercial |
| Width | 0.85" |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| Head Style | Slotted |
| Hole Diameter | 0.22" |
| Overall Length | 1.13" |
| Overall Width | 0.85" |
| Standards | CULUS LISTED, UL LISTED |
| Tongue Length | 0.47" |
| Tongue Thickness | 0.15" |
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 2.16 |
| Ship length (cm) | 2.87 |
| Ship width (cm) | 0.97 |
| HS code | 8535908060 |
| Country of Origin | CA |
| Product | Model | Pkg. Qty. | Price | |
|---|---|---|---|---|
 |
CL501TN | 10 | €153.86 |
