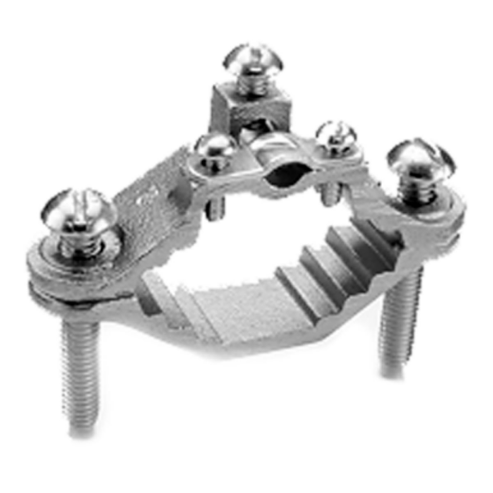

| Item | Pipe Ground Clamp |
| Body Material | Bronze Alloy |
| Conductor Size | 2 AWG to 10 AWG |
| Length | 2.34" |
| Max. Conductor Size | 2 AWG |
| Min. Conductor Size | 10 AWG |
| Number Of Wires | 1 |
| Terminal Material | Bronze Alloy |
| Type | Commercial |
| Width | 1 3/5" |
| Accessory Type | Ground Clamp |
| Description/special Features | Bare Armored or Unarmored Cable |
| For Maximum Ground Conductor Wire Size | 2 AWG STR |
| For Maximum Pipe Size | 1" |
| For Minimum Ground Conductor Wire Size | 10 AWG SOL |
| For Minimum Pipe Size | 3/8" |
| For Use With | Copper Conductor, Water Pipes |
| Grounding Wire Size | 10 AWG to 2 AWG |
| Grounding Wires Connected To | 1/2" to 1" Pipe |
| Material | Bronze |
| Number Of Grounding Wires | 1 |
| Overall Height | 1 19/32" |
| Overall Length | 2 11/32" |
| Overall Width | 1 1/16" |
| Package Quantity | 1 |
| Standards | UL LISTED, UL467 |
| Torque | 50 lbs.-in. |
| Type - Grounding Connector | Mechanical |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 5.94 |
| Ship width (cm) | 2.69 |
| HS code | 8535908060 |
| Country of Origin | IN |
| Model | Body Material | Conductor Size | Length | Max. Conductor Size | Min. Conductor Size | Mount | Rod Dia. | Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GG171 | Copper Alloy | 1.88" to 1.5" | 3.5" | 1.88" | 1.5" | - | 1-5/8" to 1-7/8" Rod, 1-1/2" Pipe | 3.25" | 1 | €367.32 | |
| GG181 | Copper Alloy | 2.38" to 2" | 4.25" | 2.38" | 2" | - | 2" to 2-3/8" Rod, 2" Pipe | 3.69" | 1 | €408.78 | |
| GG161 | Copper Alloy | 1.5" to 1.25" | 3.5" | 1.5" | 1.25" | - | 1-3/8" to 1-1/2" Rod, 1-1/4" Pipe | 3" | 1 | €350.06 | |
| C11N | Solid Cast Bronze | 2 AWG to 10 AWG | 2.25" | 2 AWG | 10 AWG | 1/2" to 1" Pipe | 1/2" to 1" Pipe | 1.81" | 5 | €4.02 | |
| C11D | Solid Cast Bronze | 2 AWG to 10 AWG | 2.25" | 2 AWG | 10 AWG | 1/2" to 1" Pipe, #4 to #8 Rebar | 1/2" to 1" Pipe | 1.81" | 5 | €69.62 | |
| C22 | Solid Cast Bronze | 2 AWG to 10 AWG | 3.63" | 2 AWG | 10 AWG | 1-1/4" to 2" Pipe | 1-1/4" to 2" Pipe | 2.38" | 1 | €31.75 | |
| C5 | Solid Cast Bronze | 2 AWG to 10 AWG | 2.25" | 2 AWG | 10 AWG | 1/2" to 1" Pipe | 1/2" to 1" Pipe | 1.56" | 5 | €44.80 |
