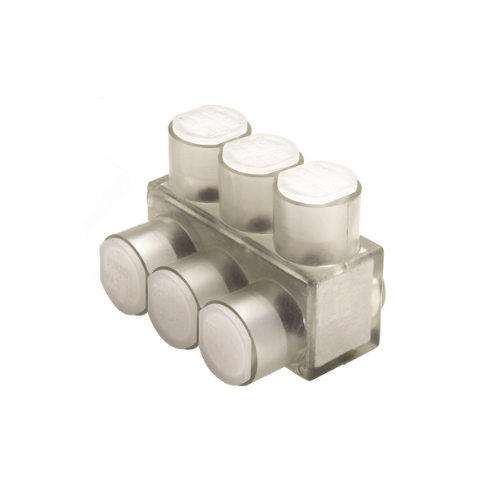

| Item | Multi Tap Connector |
| Body Finish | Plastisol |
| Body Material | Aluminium |
| Color | Clear |
| Compatible With Product Type | Code Conductor |
| Connector Type | Single Sided Entry |
| Current | 175A |
| Direct Burial Rated | No |
| Finish | Unplated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Head Type | Hex |
| Insulation | Insulated |
| Insulation Material | Plastisol |
| Length | 2.19" |
| Length (straight Wireway) | 2.19" |
| Min. Conductor Size | 14 AWG |
| Mounting Hole Size | Not Applicable |
| No. Of Ports | 3 |
| Number Of Ports | 3 |
| Rohs Compliant | Yes |
| Screw Finish | Tin Plated Steel |
| Screw Material | Aluminum |
| Special Features | Insulated |
| Stud Size | 0.312" |
| Tap Shape | L |
| Terminal Material | Aluminium |
| Width | 1.38" |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| Head Style | Hex |
| Hex Size | 3/16" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Overall Length | 2.19" |
| Overall Width | 1.31" |
| Standards | CSA APPROVED, UL 486A, UL 486B, UL LISTED |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 3.33 |
| HS code | 8535908040 |
| Country of Origin | US |
| Model | Connector Type | Height | Insulation Type | Length | Max. Conductor Size | Min. Conductor Size | Min. Voltage | Number Of Ports | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BIBD2503 | Double-Sided Entry, T | - | - | 2.97" | 250 kcmil | 10 AWG | - | - | €113.10 | |
| BIBD2/03 | Double-Sided Entry, T | - | - | 2.19" | 2/0 AWG | 14 AWG | - | - | €75.87 | |
| BIBD2/02 | Double-Sided Entry, T | - | - | 1.56" | 2/0 AWG | 14 AWG | - | - | €77.68 | |
| BIBD2504 | Double-Sided Entry, T | - | - | 3.91" | 250 kcmil | 10 AWG | - | - | €121.06 | |
| BIBD2502 | Double-Sided Entry, T | - | - | 2.64" | 250 kcmil | 10 AWG | - | - | €88.40 | |
| BIBS2503 | Single-Sided Entry, L | - | - | 2.97" | 250 kcmil | 10 AWG | - | - | €83.48 | |
| BIBD43 | Double-Sided Entry, T | - | - | 1.51" | 4 AWG | 14 AWG | - | - | €64.64 |
