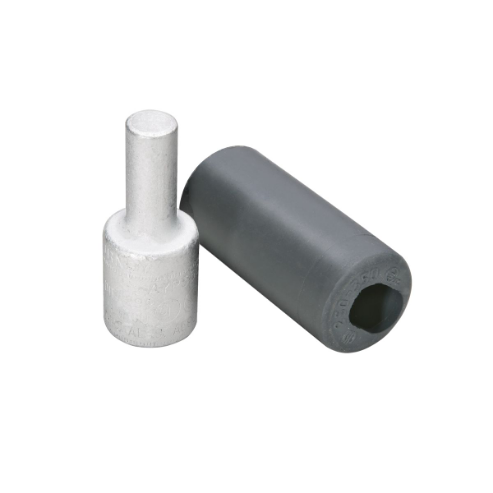

| Item | AL Compression Adapter |
| Barrel Diameter | 3/5" |
| Color Code | Tan |
| Connection Orientation | Straight |
| Connector Type | Pin Terminal |
| Die Code | 296 |
| For Conductor Material | Aluminum, Copper |
| For Max. Stranded Copper Wire Size | 6 AWG |
| For Stranded Aluminum Wire Size - Maximum | 6 AWG |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| For Wire Size | 6 AWG |
| Height | 0.6" |
| Length | 1 17/20" |
| Length (straight Wireway) | 1.85" |
| Max. Voltage | 35 kV |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 6 AWG |
| Number Of Crimps | 1 |
| Pin Dia. | 0.234" |
| Pin Equivalent Wire Size | 4 AWG |
| Strip Length | 1 1/16" |
| Type | Al/Cu Conductors |
| Width | 3/5" |
| Wire Material | Al Str-Size, Cu Str-Size |
| Ship height (cm) | 0.58 |
| Ship length (cm) | 4.7 |
| Ship width (cm) | 1.52 |
| HS code | 8535908020 |
| Country of Origin | US |
| Model | Diameter | Height | Item | Length | Max. Wire Size | Min. Wire Size | Type | Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AYPO3/0 | 3/8" | .85 | AL Offset Adapter | 2.80 | 3/0 AWG | 1 AWG | AL/CU Cable | 0.86" | 1 | €68.42 | |
| AYPO750 | 13/16" | 1.46 | AL Offset Adapter | 4.16 | 700-750 kcmil | 500 kcmil | AL/CU Cable | 1.46" | 1 | €89.72 | |
| AYPO4/0 | 27/64" | .85 | AL Offset Adapter | 2.80 | 4/0 AWG | 1 AWG | AL/CU Cable | 0.86" | 1 | €70.62 | |
| AYPO600 | 47/64" | 1.46 | AL Offset Adapter | 4.02 | 600 kcmil | 250 kcmil | AL/CU Cable | 1.46" | 1 | €88.18 | |
| AYP500 | 11/16" | 1.31 | AL Compression Adapter | 3.08 | 500 kcmil | 4/0 AWG | AL/CU Cable | 1.46" | 1 | €65.58 | |
| AYPO500 | 43/64" | 1.31 | AL Offset Adapter | 3.43 | 500 kcmil | 4/0 AWG | AL/CU Cable | 1.31" | 1 | €65.61 | |
| AYPO250 | 15/32" | 1.10 | AL Offset Adapter | 2.58 | 250 kcmil | 1/0 AWG | AL/CU Cable | 1.11" | 5 | €459.40 |
