Get it by Wednesday, Jun 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment
| Item | Dual Rated Splice/Reducer |
| Body Material | Aluminium |
| Color | Bare |
| Compatible With Product Type | Aluminum Cable, Copper Cable |
| Connector Type | Dual Rated Splice Reducer |
| Contact Finish | Tin |
| Finish | Tin Coated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| For Stud Size | 9/16" |
| Head Type | Slotted |
| Hole Dia. | Not Applicable |
| Hole Spacing | Not Applicable |
| Length | 2.31" |
| Length (straight Wireway) | 2.31" |
| Material | Aluminium |
| Min. Conductor Size | 6 AWG |
| No. Of Conductors | 2 |
| Number Of Conductors | 2 |
| Overall Depth | 1" |
| Special Features | Connectors Feature Rounded Bottoms, Large Cable Ranges, Large Screw Diameters, Prevents Contact Of Dissimilar Metals, Provide Low Contact Resistance And Prevents Galvanic Corrosion |
| Stud Size | 0.312" |
| Terminal Material | Aluminium |
| Type | Commercial |
| Width | 1.09" |
| Color Code | Bare |
| Connection Orientation | Dual Rated Splice/Reducer |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| Head Style | Slotted |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Number Of Terminations | 2 |
| Overall Length | 2.31" |
| Overall Width | 1.09" |
| Standards | ANSI, CSA CERTIFIED, UL LISTED |
| Torque | 275 lbs.-in. |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.78 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 2.54 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Length | Max. Conductor Size | Min. Conductor Size | Stud Size | Width | Price | |
|---|---|---|---|---|---|---|---|---|
|

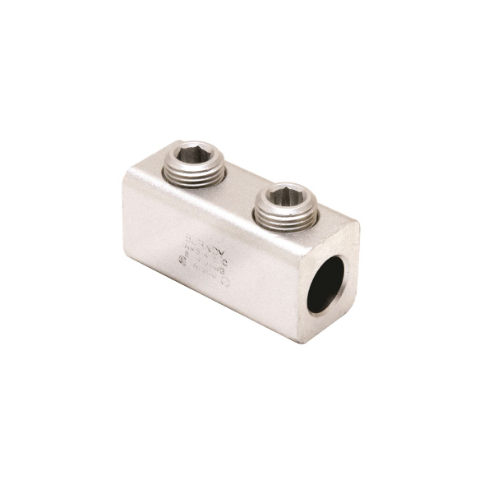

AMS2 | 1.59" | 2 AWG | 14 AWG | - | 0.56" | €19.95 | |
 |
AMS0 | 1.91" | 1/0 AWG | 14 AWG | 7/16" | 0.75" | €22.51 | |
|
AMS250 | 4.09" | 250 kcmil | 6 AWG | - | 1.09" | €55.20 | |
|
AMS350 | 4.34" | 350 kcmil | 6 AWG | 11/16" | 1.09" | €61.04 | |
|
AMS500 | 4.78" | 500 kcmil | 3/0 AWG | 13/16" | 1.38" | €92.68 | |
 |
AMS750 | 6.06" | 750 kcmil | 250 kcmil | 15/16" | 1.63" | €138.51 |
