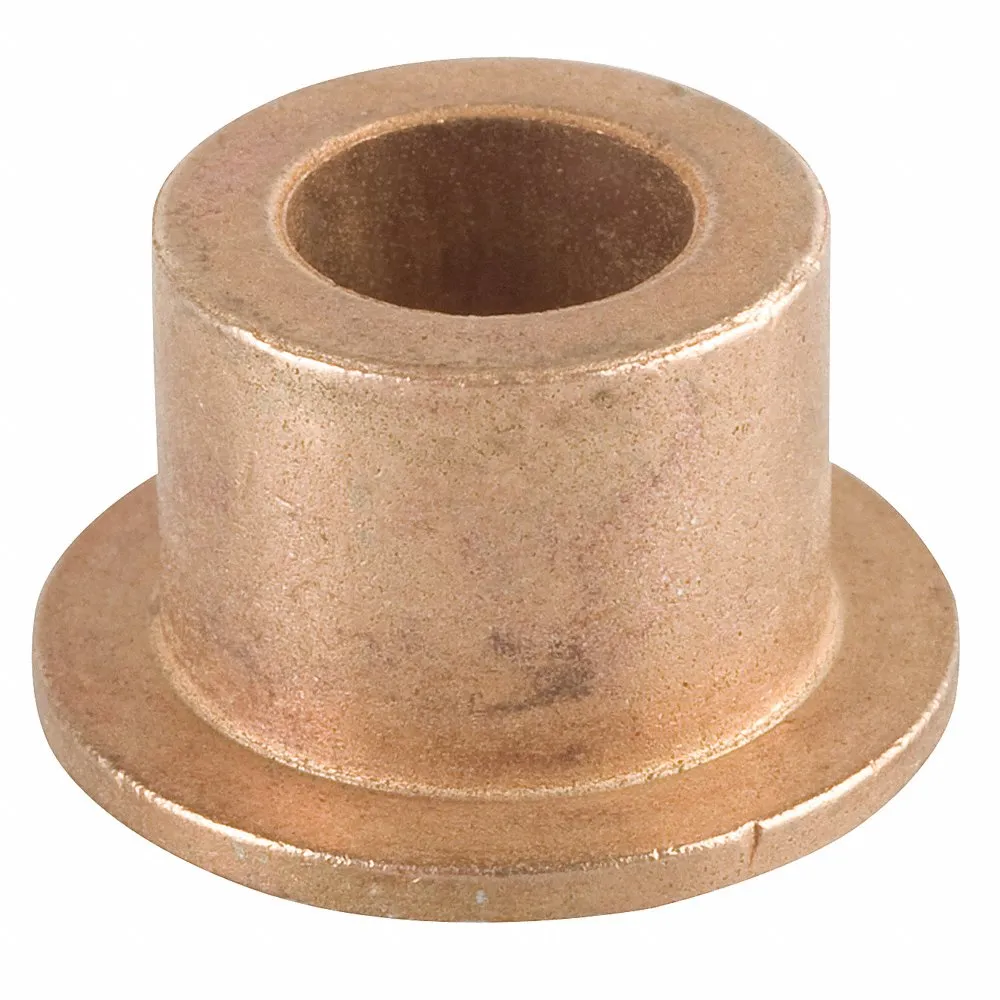

BUNTING BEARINGS EXEF162016 Flange Sleeve Bearing, 1 Inch I.D., 1 1/4 Inch O.D., 1 Inch Length, Bronze
€21.34 /pack
Request a Quote
Payment
Payment
| Item | Sleeve Bearing |
| Bore Dia. | 1" |
| Bronze Material Type | Sintered Bronze |
| Color | Bronze |
| Flange Dia. | 1 1/2" |
| Flange Thickness | 1/8" |
| Flange Type | Flanged |
| Inside Dia. | 1" |
| Length Tolerance | -0.005" to +0.005" |
| Lubrication Type | Lubricated , Lubrication Required |
| Material | Metal |
| Outside Dia. | 1 1/4" |
| Plain Bearing Material | Bronze |
| System Of Measurement | Inch |
| Bore Diameter | 1" |
| Flange Diameter | 1 1/2" |
| Lubricant Material | SAE 90 Oil with PTFE |
| Material Grade | SAE 841 |
| Maximum Pv | 50000 lbs.-ft./sq. in-min. |
| Maximum Temperature | 460°F |
| Minimum Temperature | -40°F |
| Outside Diameter | 1 1/4" |
| Overall Length | 1" |
| Ship weight (kg) | 0.16 |
| Country of Origin | US |
| Model | Pkg. Qty. | Price | |
|---|---|---|---|
| EXEF040604 | 3 | €4.07 | RFQ
|
| EXEF040606 | 3 | €4.84 | RFQ
|
| EXEF040608 | 3 | €6.10 | RFQ
|
| EXEF050706 | 3 | €5.93 | RFQ
|
| EXEF050806 | 3 | €6.12 | RFQ
|
| EXEF060804 | 3 | €3.70 | RFQ
|
| EXEF060806 | 3 | €5.36 | RFQ
|
