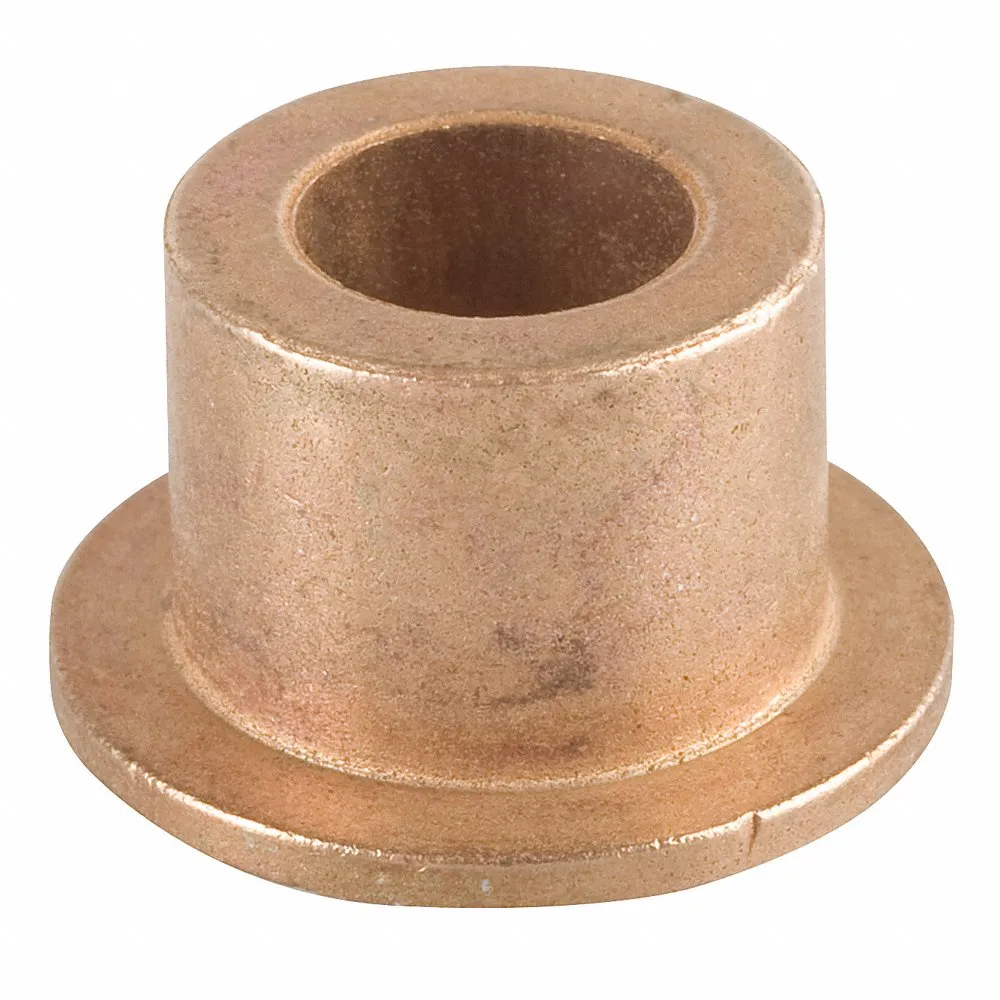

BUNTING BEARINGS ECOF162012 Flange Sleeve Bearing, 1 Inch I.D., 1 1/4 Inch O.D., 3/4 Inch Length, Bronze
€16.80 /pack
Request a Quote
Payment
Payment
| Item | Sleeve Bearing |
| Application | Food Industry |
| Bore Dia. | 1" |
| Bronze Material Type | Sintered Bronze |
| Color | Bronze |
| Flange Dia. | 1 1/2" |
| Flange Thickness | 1/8" |
| Flange Type | Flanged |
| Inside Dia. | 1" |
| Length Tolerance | -0.005" to +0.005" |
| Lubrication Type | Lubricated |
| Material | Metal |
| Outside Dia. | 1 1/4" |
| Plain Bearing Material | Bronze |
| System Of Measurement | Inch |
| Bore Diameter | 1" |
| Flange Diameter | 1 1/2" |
| Lubricant Material | USDA H-1 Approved |
| Material Grade | SAE 841 |
| Maximum Pv | 50000 lbs.-ft./sq. in-min. |
| Maximum Temperature | 220°F |
| Minimum Temperature | 10°F |
| Outside Diameter | 1 1/4" |
| Overall Length | 3/4" |
| Standards | USDA H1 CERTIFIED |
| Ship weight (kg) | 0.14 |
| Country of Origin | US |
| Model | Pkg. Qty. | Price | |
|---|---|---|---|
| ECOF030506 | 3 | €4.94 | RFQ
|
| ECOF040604 | 3 | €4.11 | RFQ
|
| ECOF040606 | 3 | €4.77 | RFQ
|
| ECOF040608 | 3 | €6.32 | RFQ
|
| ECOF040612 | 3 | €10.57 | RFQ
|
| ECOF060804 | 3 | €4.77 | RFQ
|
| ECOF060806 | 3 | €5.82 | RFQ
|
