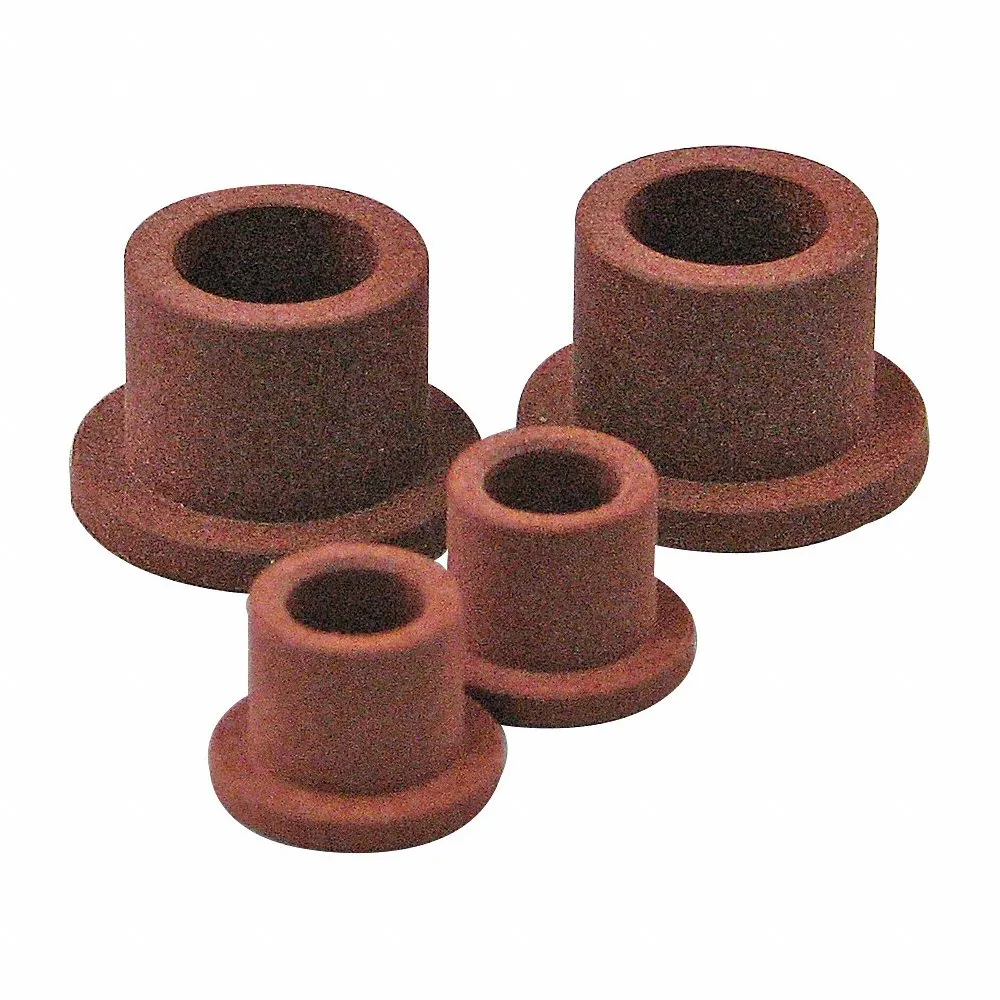

BUNTING BEARINGS BJ4F162012 Flange Bearing, Size 1 x 1-1/4 x 1-1/2 x 1-1/2 x 1/8 Inch, PTFE | CD4VPT

BUNTING BEARINGS BJ4F162012 Flange Bearing, Size 1 x 1-1/4 x 1-1/2 x 1-1/2 x 1/8 Inch, PTFE

Item: CD4VPTModel: BJ4F162012Cross Ref: 246N60
See variants (16)
Limited Availability
€40.10 /unit
This product can only be shipped in multiples of 4
Request a Quote

Payment

Product Specifications:

ItemFlange Mount Bearing
Bore Diameter1"
ColorRed
Flange Diameter1 1/2"
Flange Thickness1/8"
Length Tolerance+/-0.005"
Material GradeJ-4200
Maximum Pv30000 lbs.-ft./sq. in-min.
Maximum Temperature550°F
Minimum Temperature-250°F
Outside Diameter1 1/4"
Overall Length1 1/2"
Plain Bearing MaterialPTFE
Resistance PropertiesWear Resistant

Shipping Info:

Ship weight (kg) 0.03
Country of OriginUS

Product Details:

    • BJ4 material is suitable for use with rotary and linear bearings as it does not require lubrication and is compatible with most acids. It operates at a PV value of up to 30000, and has operating temperature ranging from -250 to 550 degrees Fahrenheit.

Product Variants

ProductModelPkg. Qty.Price
BUNTING BEARINGS BJ4F030502 Flange Bearing, Size 3/16 x 5/16 x 1/4 x 7/16 x 1/16 Inch, PTFE | CD4VPE BJ4F0305025€27.24
RFQ
BUNTING BEARINGS BJ4F030504 Flange Bearing, Size 3/16 x 5/16 x 1/2 x 7/16 x 1/16 Inch, PTFE | CD4VPF BJ4F0305043€27.50
RFQ
BUNTING BEARINGS BJ4F040603 Flange Bearing, Size 1/4 x 3/8 x 3/8 x 1/2 x 1/16 Inch, PTFE | CD4VPG BJ4F0406035€32.43
RFQ
BUNTING BEARINGS BJ4F040604 Flange Bearing, Size 1/4 x 3/8 x 1/2 x 1/2 x 1/16 Inch, PTFE | CD4VPH BJ4F0406043€25.38
RFQ
BUNTING BEARINGS BJ4F061004 Flange Bearing, Size 3/8 x 5/8 x 1/2 x 7/8 x 1/8 Inch, PTFE | CD4VPJ BJ4F0610043€41.54
RFQ
BUNTING BEARINGS BJ4F061006 Flange Bearing, Size 3/8 x 5/8 x 3/4 x 7/8 x 1/8 Inch, PTFE | CD4VPK BJ4F0610061€10.43
RFQ
BUNTING BEARINGS BJ4F081204 Flange Bearing, Size 1/2 x 3/4 x 1/2 x 1 x 1/8 Inch, PTFE | CD4VPL BJ4F0812043€32.12
RFQ
