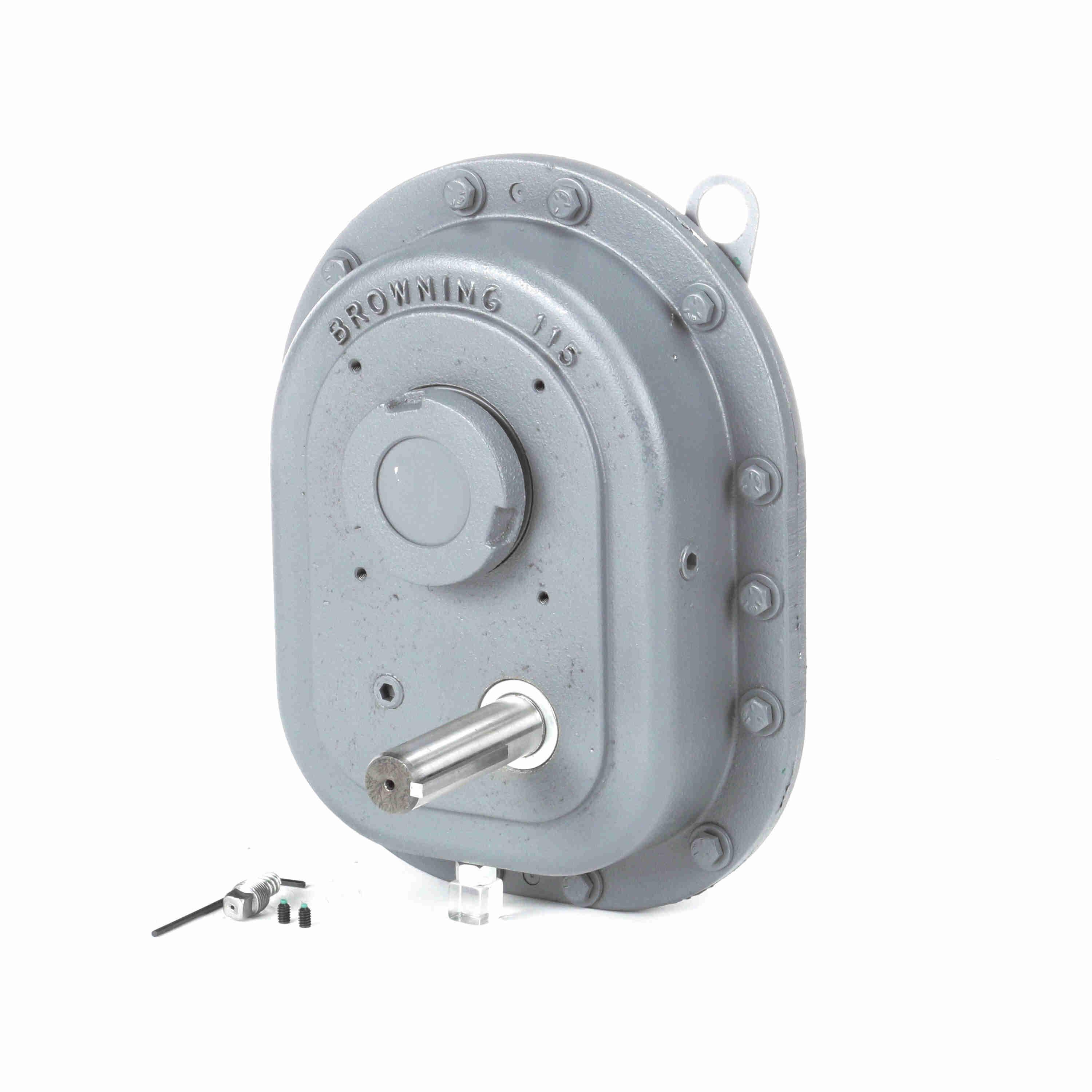

BROWNING PC0003 115SMTP15 Shaft Mount Reducer
€4,292.76 /unit
Request a Quote
Payment
Payment
| Item | Reducer |
| Base Included | No |
| Bolt Hole Dia. | 3/8" |
| Bore Dia. | 1.938" |
| Center Distance | 4 9/25" |
| Efficiency | 80% |
| Fan Cooled | No |
| Gear Ratio | 15:1 |
| Gear Type | Helical |
| Height | 14 2/25" |
| Hp | 1 hp |
| Input Dia. | 1 3/25" |
| Input Rating Value Plus Um | 1 hp |
| Input Rpm | 1750 RPM |
| Input Shaft Dia. | 1 3/25" |
| Input Shaft Length | 4 6/25" |
| Input Style | Shaft |
| Length | 11" |
| Lubrication | Synthetic/Mineral Oil |
| Material | Cast Iron |
| Max. Overhung Load Value And Um | 2910 lbs. |
| Motor Included | No |
| Mounting Method | Direct Mounted |
| Nominal Ratio | 15:1 |
| Output Bore Range | 15/16" to 1 15/16" |
| Output Bushing Part Number | 115TBP |
| Output Dia. | 1 15/16" |
| Output Rpm | 116.67 RPM |
| Output Type | Bushed |
| Overall Length | 11.7" |
| Overall Width | 11" |
| Product Series | SMTP Series |
| Reducer Type | Parallel |
| Reduction Type | Double |
| System Of Measurement | Imperial |
| Torque Rating | 36.013 lbs.-in., 540.19 lbs.-in. |
| Type | Type SMTP |
| Weight | 34.05 Kg |
| Width | 11.7" |
