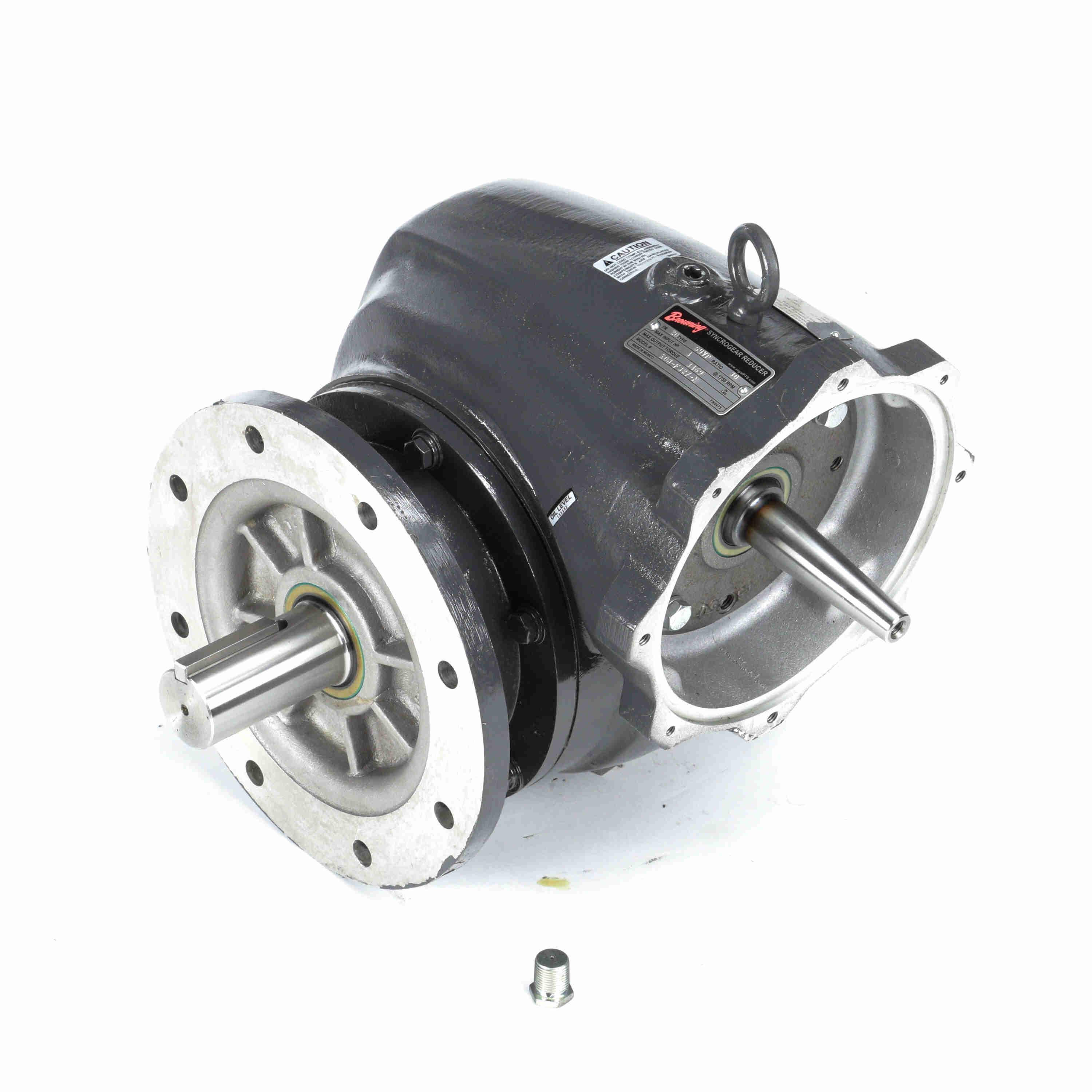

BROWNING F327 20GWVPW3 30 Worm Gear Reducer, Right Angle, Single-Reduction
€3,790.83 /unit
Request a Quote
Payment
Payment
| Item | Reducer |
| Base Included | No |
| Base To Center Of Input Shaft | 8 3/4" |
| Base To Center Of Output Shaft | 5" |
| Bolt Hole Dia. | 0.563" |
| Center Distance | 3 3/4" |
| Fan Cooled | No |
| Gear Type | Worm |
| Height | 13 7/25" |
| Housing Material | Cast Iron |
| Input Rating Value Plus Um | 4 hp |
| Input Style | C Face Quill |
| Max. Nominal Input Rating | 3 hp |
| Max. Overhung Load Value And Um | 2850 lbs. |
| Motor Included | No |
| Mounting Bolt Pattern Footprint | Square |
| Mounting Method | Direct Mounted |
| Mounting Type | Other Mount Flange Mounted |
| Nominal Ratio | 30:1 |
| Output Rpm | 56 RPM |
| Output Shaft Dia. | 1 5/8" |
| Output Shaft Length | 3.063" |
| Output Type | Shaft |
| Overall Length | 17.031" |
| Overall Width | 9.281" |
| Product Series | GWV Series |
| Reducer Type | Right Angle |
| System Of Measurement | Imperial |
| Torque Rating | 3469 lbs.-in. |
| Weight | 37.682 Kg |
