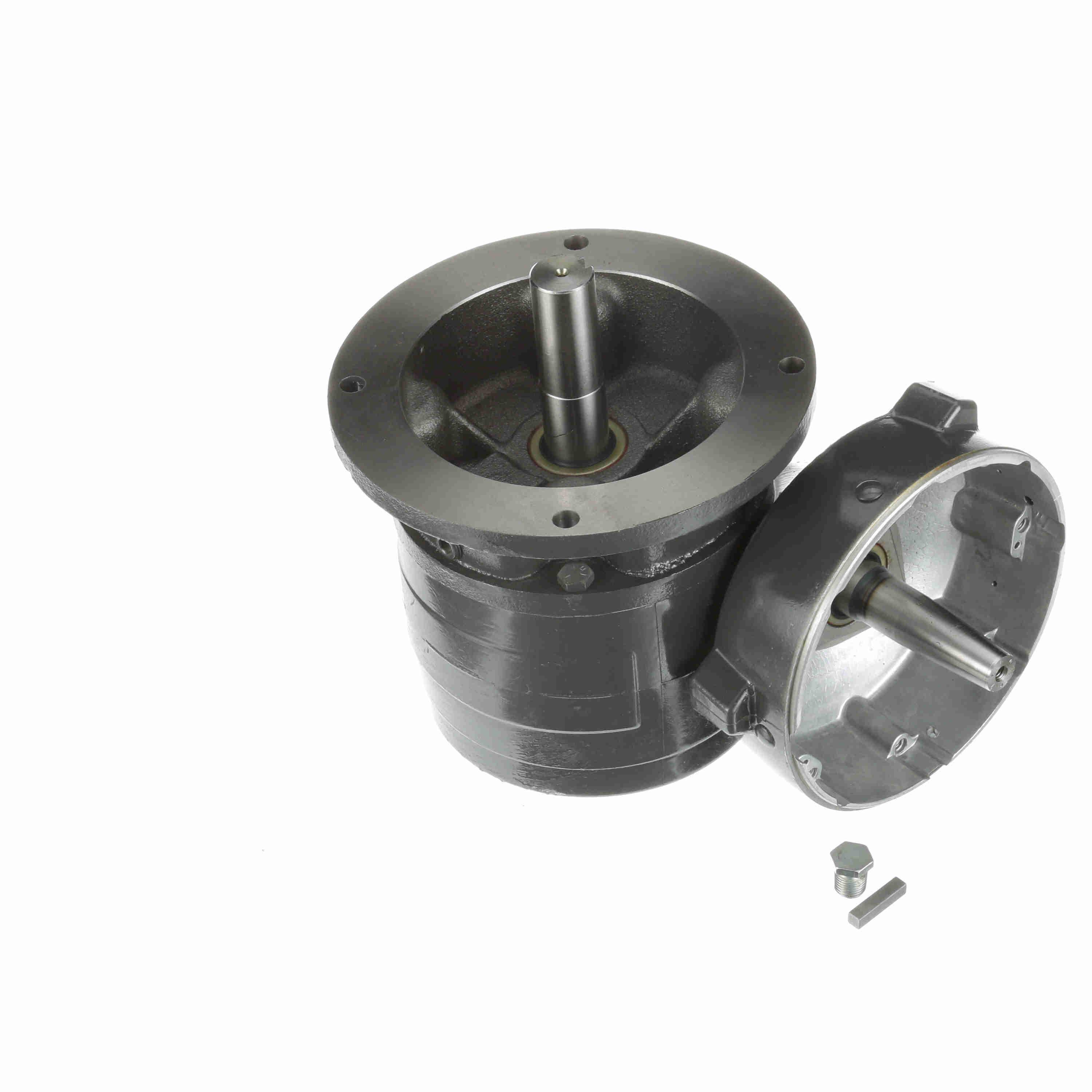

BROWNING E448 6GWVPW3 31 Worm Gear Reducer, Right Angle, Single-Reduction
€1,465.73 /unit
Request a Quote
Payment
Payment
| Item | Reducer |
| Base Included | No |
| Base To Center Of Input Shaft | 6.376" |
| Base To Center Of Output Shaft | 3.813" |
| Bolt Hole Dia. | 0.406" |
| Center Distance | 2.563" |
| Fan Cooled | No |
| Gear Ratio | 31:1 |
| Gear Type | Worm |
| Height | 9.69" |
| Hp | 1 hp |
| Input Dia. | 6.376" |
| Input Rating Value Plus Um | 1 3/10 hp |
| Input Style | C Face Quill |
| Length | 13 1/8" |
| Lubrication | Polyglycol Oil |
| Material | Cast Iron |
| Max. Nominal Input Rating | 1 hp |
| Max. Overhung Load Value And Um | 980 lbs. |
| Motor Included | No |
| Mounting Bolt Pattern Footprint | Square |
| Mounting Frame | 145TY |
| Mounting Method | Direct Mounted |
| Mounting Type | Direct, Square |
| Nominal Ratio | 31:1 |
| Output Dia. | 1" |
| Output Rpm | 56 RPM |
| Output Shaft Dia. | 1" |
| Output Shaft Length | 2" |
| Output Type | Shaft |
| Overall Length | 13 1/8" |
| Overall Width | 9.281" |
| Product Series | GWV Series |
| Reducer Type | Right Angle |
| System Of Measurement | Imperial |
| Torque Rating | 1244 lbs.-in. |
| Type | Single Reduction |
| Weight | 12.726 Kg |
| Width | 9.281" |
| Ship weight (kg) | 8.1 |
