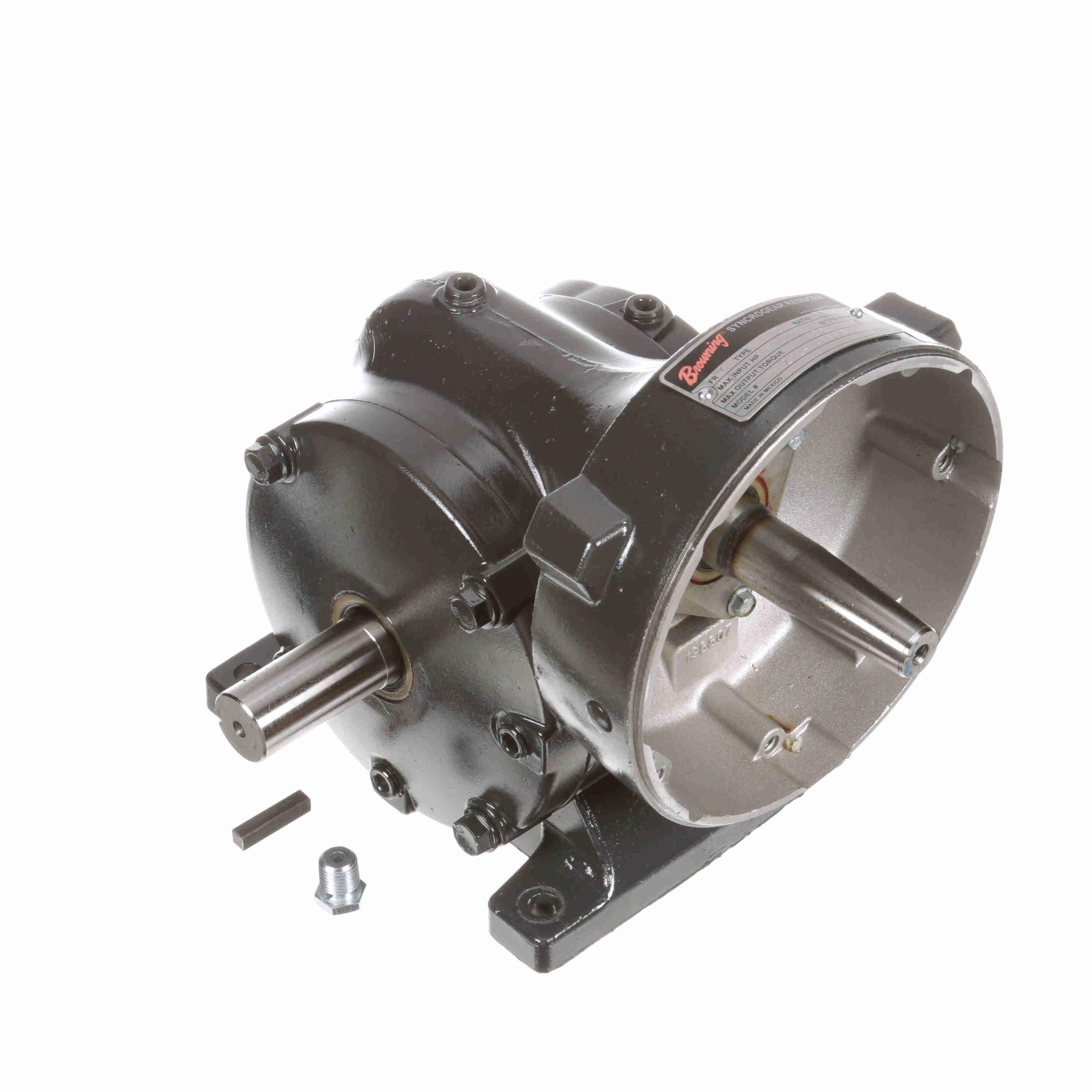

BROWNING E438 6GWPF1 58 Worm Gear Reducer, Right Angle, Single-Reduction
€1,125.17 /unit
Request a Quote
Payment
Payment
| Item | Reducer |
| Base Included | Yes |
| Base To Center Of Input Shaft | 5.406" |
| Base To Center Of Output Shaft | 3 1/4" |
| Bolt Hole Dia. | 0.406" |
| Center Distance | 2.156" |
| Fan Cooled | No |
| Gear Type | Worm |
| Height | 9.09" |
| Housing Material | Cast Iron |
| Input Rating Value Plus Um | 39/50 hp |
| Input Style | C Face Quill |
| Max. Nominal Input Rating | 3/4 hp |
| Max. Overhung Load Value And Um | 980 lbs. |
| Motor Included | No |
| Mounting Bolt Pattern Footprint | Rectangular |
| Mounting Frame | 143T |
| Mounting Method | Direct Mounted |
| Mounting Position | Floor |
| Nominal Ratio | 58:1 |
| Output Rpm | 30 RPM |
| Output Shaft Dia. | 1" |
| Output Shaft Length | 2" |
| Output Type | Right Hand |
| Overall Length | 12.81" |
| Overall Width | 8.219" |
| Product Series | GW Series |
| Reducer Type | Right Angle |
| System Of Measurement | Imperial |
| Torque Rating | 981 lbs.-in. |
| Weight | 9.414 Kg |
| Ship weight (kg) | 8.1 |
