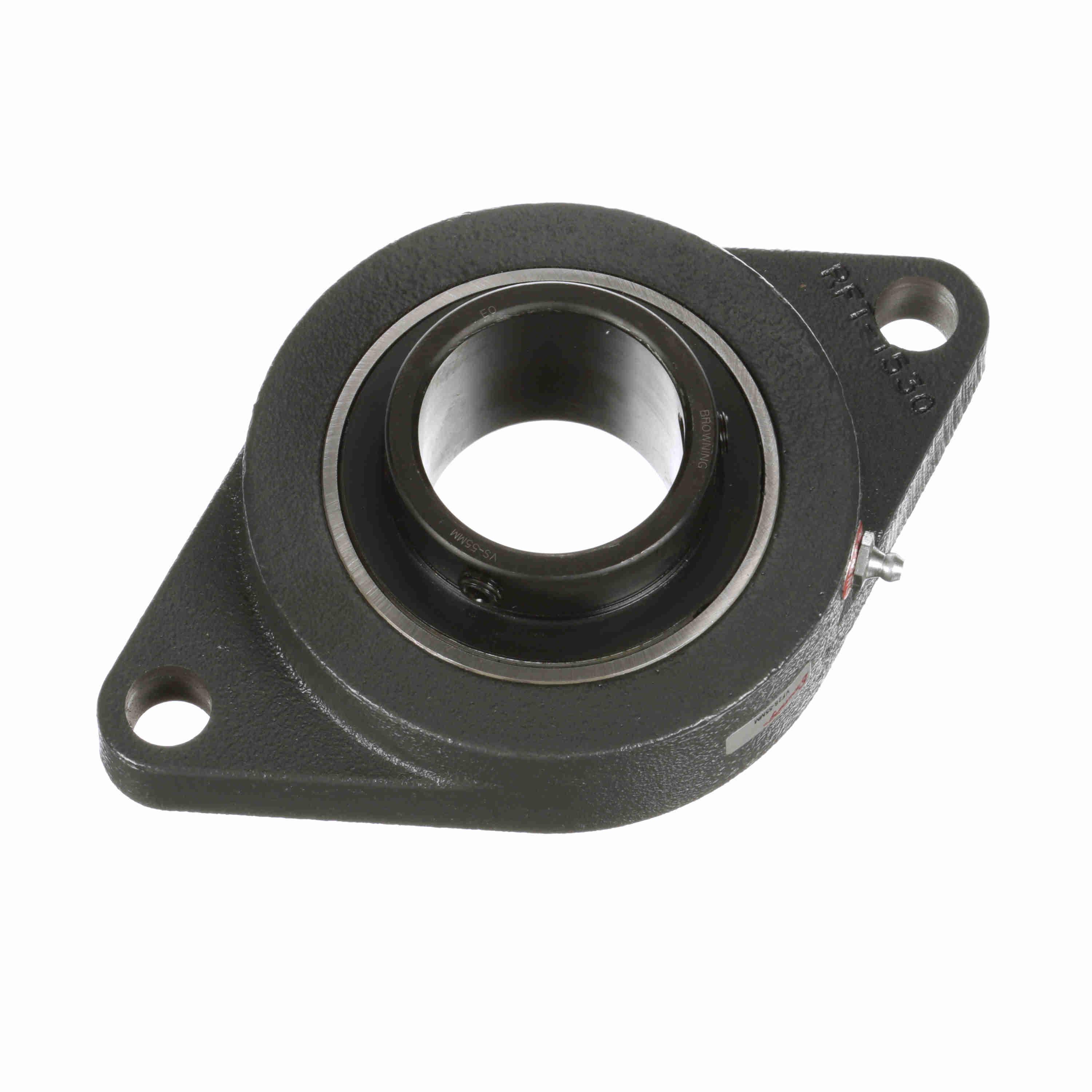

BROWNING 732671 VF2S-55MM Two Bolt Flange Ball Bearing, Mounted, Cast Iron, Black Oxided Inner, Setscrew Lock
Get it by Tuesday, Jun 17
€335.29 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 184 mm |
| Bolt Spacing | 7.244" |
| Bore Dia. | 55 mm |
| Dynamic Load Capacity | 43379N |
| Expansion Type | Non-Expansion |
| Flange Mounting Type | 2 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Insert Part Number | VS-55MM |
| Length Through Bore | 2.189" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 2500 RPM |
| Mounting Bolts | 16 mm |
| Mounting Method | Set Screw |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Circle Dia | 7 1/5" |
| Number Of Rows | 1 |
| Other Features | Normal Duty |
| Overall Depth | 58.7 mm |
| Overall Dia. | 215.9 mm |
| Overall Height | 133.4 mm |
| Overall Length | 215.9 mm |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Normal Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF2S 200 Series |
| Static Load Capacity | 29363N |
| System Of Measurement | Metric |
| Temp. Rating | 121°C |
| Weight | 3.438 Kg |
| Ship weight (kg) | 3.21 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 5.87 |
