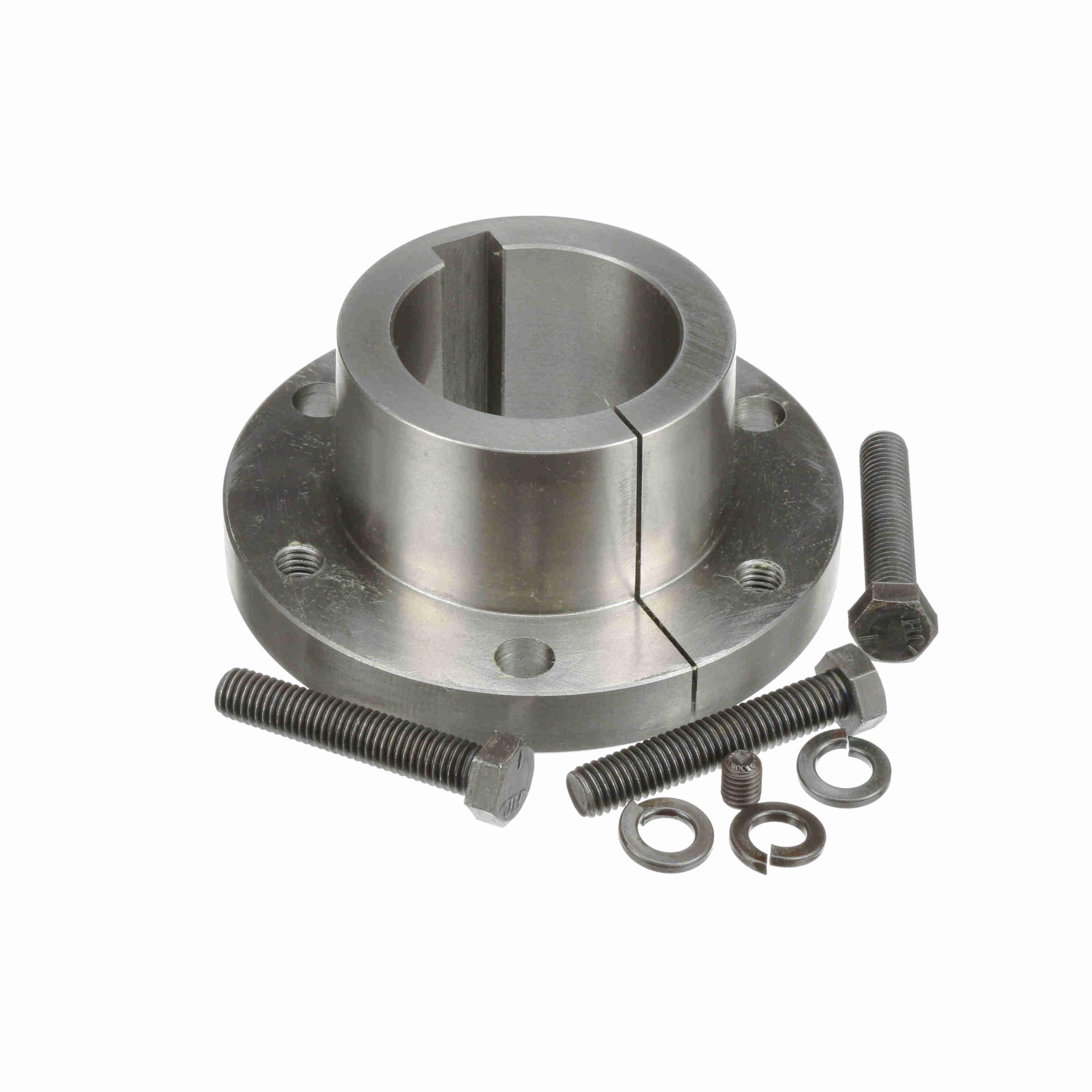

BROWNING 1073485 E 2 11/16 Q-D Bushing, 2.6875 Inch Bore Size, 6 Inch Outer Diameter, E Bushing, Ductile Iron-Grade 65-45-34
Get it by Tuesday, Jun 17
€243.93 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 5" |
| Bore Size | 2 11/16" |
| Bushing Series | E Series |
| Bushing Style | QD |
| Flange Dia. | 6" |
| Flange Thickness | 3/4" |
| For Use With | Gearbelt Sheaves, Sprockets And Pulleys |
| Keyway | Yes |
| Keyway Size | 5/8" x 5/16" |
| Length Thru Bore | 2 5/8" |
| Material | Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 3.834" |
| Overall Length | 2 16/25" |
| Rated Torque | 20000 lbs.-in. |
| Screw Size | 1/2"-13 |
| Screw Thread Length | 2 3/4" |
| System Of Measurement | Imperial |
| Type | Type E |
| Weight | 7.3 lbs. |
| Ship weight (kg) | 3.29 |
| Ship height (cm) | 9.73 |
| Ship length (cm) | 6.71 |
| Ship width (cm) | 9.73 |
