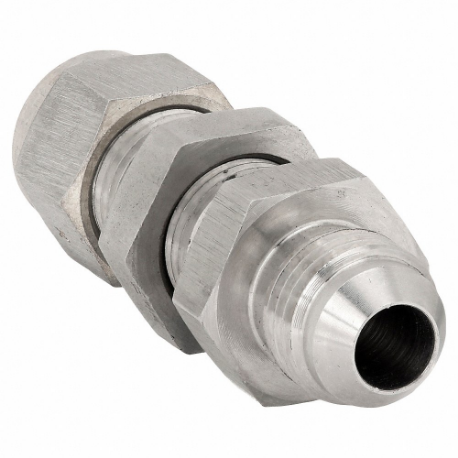

| Item | Fitting |
| Application | Gases, Hydraulic Fluid |
| Compatible Fitting Brands | Parker A-Lok, Swagelok |
| Compatible Tube Wall Thickness | 0.028" |
| Fits Brand | Parker A-Lok, Swagelok |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Dia. | 1/4" |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MJIC |
| Fitting Side B Tube Outer Dia. | 1/4" |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Hex Size | 5/8" |
| Length | 2 1/8" |
| Material | Stainless Steel |
| Max. Operating Pressure | 4020 psi |
| Max. Operating Temp. | 1200°F |
| Mfr. Series | Brennan Instrumentation Series |
| Resistance Properties | Vibration Resistant |
| Specific Fitting Shape | Bulkhead Straight |
| System Of Measurement | Imperial |
| Thread Size A | 7/16"-20 |
| Thread Size B | 7/16"-20 |
| Tube Fitting Material | Stainless Steel |
| Tube Size | Not Applicable |
| Fitting Material | Stainless Steel |
| Material Grade | Grade 316 |
| Maximum Operating Pressure | 4020 psi |
| Maximum Operating Temperature | 1200°F |
| Overall Length | 2 1/8" |
| Series | Brennan Instrumentation |
| Standards | ASME B31.3-2002, ASTM A269-04, ASTM F1387 |
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
N0304-16-SS | Fitting | €67.17 | |
 |
N2408-16-SS | Fitting | €126.02 | |
 |
N0319-B-01-SS | Fitting | €3.34 | |
 |
N0319-S-01-SS | Fitting | €8.23 | |
 |
N0319-F-01-SS | Fitting | €4.89 | |
|
N2408-02-SS | Fitting | €13.66 | |
|
N0304-02-SS | Fitting | €11.68 |
