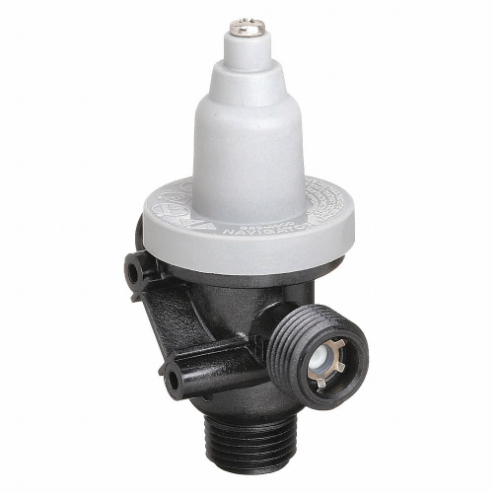

| Item | Mixing Valve |
| Body Material | Glass Filled Polysulfone |
| Cold Inlet Temp. | +33°F to +80°F |
| Flow Rate | 0.35-5.5 GPM |
| Hot Inlet Temp. | +120° to +180°F |
| Inlet Size | 1/2" |
| Inlet Type | MNPT |
| Max. Pressure | 125 psi |
| Outlet Size | 1/2" |
| Outlet Type | MNPT |
| Overall Height | 4 1/8" |
| Overall Width | 1 7/8" |
| Temp. Range | +95°F to +125°F |
| Connection Type | NPT x NPT |
| Flow Coefficient (cv) | 0.82 |
| Includes Temperature Gauge | Temperature Gauge Not Included |
| Inlet (cold) Temperature Range | 33°F to 80°F |
| Inlet (hot) Temperature Range | 120°F to 180°F |
| Inlet Connection Size | 1/2" |
| Max. Operating Pressure | 125 psi |
| Outlet Connection Size | 1/2" |
| Outlet Temperature Range | 95°F to 120°F |
| Seal Material | EPDM |
| Standards | ASSE 1070, CUPC LISTED, NSF/ANSI 372 |
| Valve Type | Thermostatic |
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 14.22 |
| Ship width (cm) | 12.45 |
| HS code | 8481809015 |
| Country of Origin | FR |
| Product | Model | Flow Rate | Inlet Size | Inlet Type | Outlet Size | Outlet Type | Overall Height | Overall Width | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S59-4000A | 0.35 to 5.5 gpm | 3/8" | Compression | 3/8" | Compression | 5" | 1.875" | 95 Degrees to 125 Degrees F | €180.72 | |
 |
S59-4016D | 0.5 to 15 gpm | 1/2" | MNPT/Sweat | 1/2" | MNPT/Sweat | 7" | 2.25" | 95 Degrees to 125 Degrees F | - | RFQ
|
 |
S59-4000BY | 0.35 to 5.5 gpm | 3/8" | Compression | 3/8" | Compression | 5" | 1.875" | 95 Degrees to 125 Degrees F | €180.03 | |
 |
S59-4016N | 0.5 to 15 gpm | 3/4" | MNPT | 3/4" | Mnpt | 7" | 2.25" | 59 Degrees to 140 Degrees F | €253.32 | |
 |
S59-4016S | 0.5 to 15 gpm | 3/4" | Sweat | 3/4" | Sweat | 6.5" | 2.25" | 59 Degrees to 140 Degrees F | €253.32 | |
 |
S59-4016X | 0.5 to 11 gpm | 1/2" | PEX | 1/2" | PEX | 6.5" | 2.25" | 59 Degrees to 140 Degrees F | €233.66 | |
 |
S59-4016Y | 0.5 to 11 gpm | 3/4" | PEX | 3/4" | PEX | 6.5" | 2.25" | 59 Degrees to 140 Degrees F | - | RFQ
|
