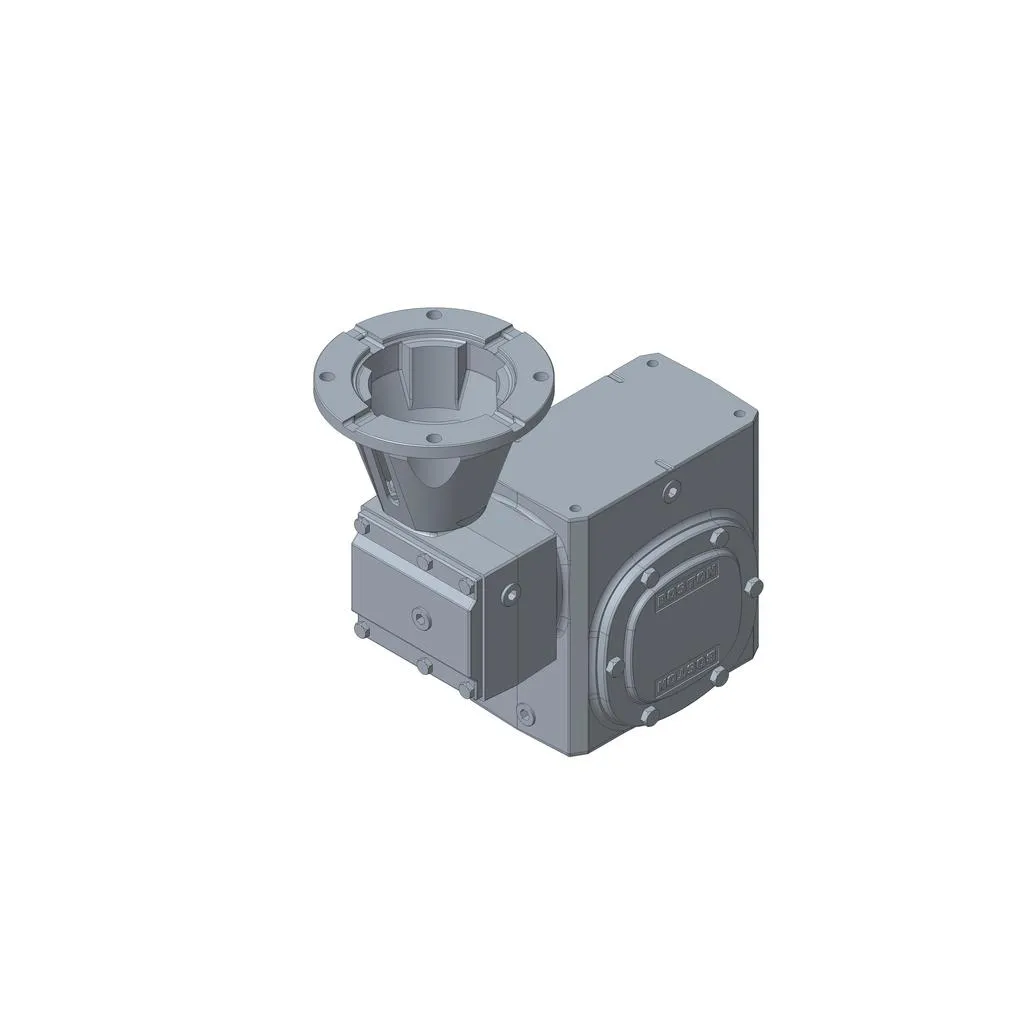

| Item | Reducer |
| Output Type | Solid |
| Base Mounting Attachment | No Base |
| Fan Cooled | No |
| Input Motor Hp | 0.75 HP at AGMA Service Class I |
| Input Power | 0.75 hp |
| Input Style | RF Coupled Flange |
| Motor Frame Size | B5 - 56C |
| Motor Hp | 0.75 |
| Output Bore/shaft Diameter | 1.1250 in |
| Output Shaft | J Solid Right Output |
| Output Speed | 17.5 RPM |
| Output Torque | 1,785 in lb |
| Pre-lubricated | No |
| Rated Efficiency | 67% |
| Ratio | 100:1 |
| Recommended Lubrication | Klubersynth UH1 6-460 |
| Reducer Material/paint | Cast Iron, Standard Paint |
| Reduction Type | Double Reduction Right Angle (WC/WD) |
| Style | Right Angle |
| Ship weight (kg) | 28.4 |
| Country of Origin | US |
