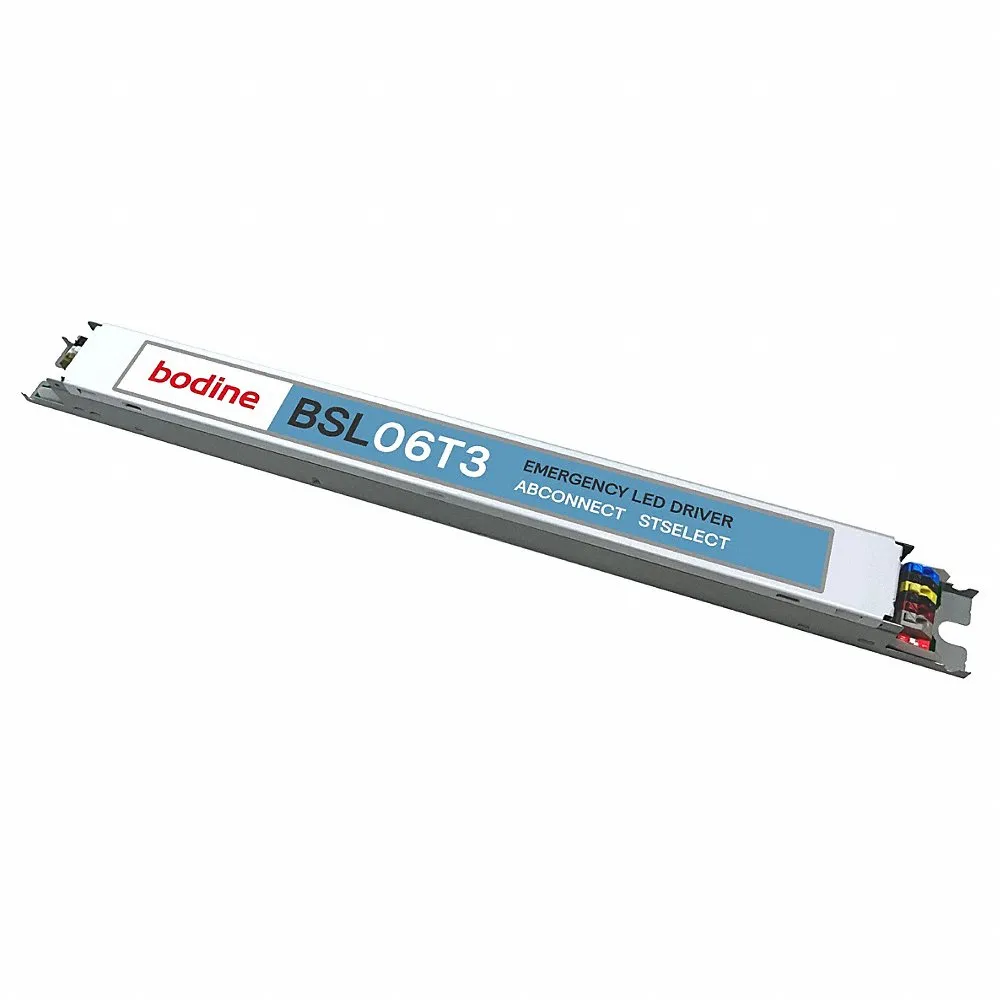

BODINE BSL06T3UAK55PKI2 Emergency LED Driver, 120-277 VAC Input Current | CL2GZC

BODINE BSL06T3UAK55PKI2 Emergency LED Driver, 120-277 VAC Input Current

Item: CL2GZCModel: BSL06T3UAK55PKI2Cross Ref: 814M19
Limited Availability
€224.72 /unit
Request a Quote

Payment

Product Specifications:

Battery TypeLithium Ion
Brand And SeriesBodine
Case Form FactorCompact
Driver ClassClass 2
Driver Mounting LocationWithin Fixture
Emergency Illumination Time90 min.
Frequency50/60 Hz
IncludesParts Kit with Labels
Initial Light Output850 lm
Input Voltage120-277V AC
Intended Led UsageFixture Array
Max. Bulb Watts6 W
Max. Case Temp.65°C
Number Of Bulbs Supported1
Operating Current @ 120v60 mA
Overall Height1"
Overall Length14 3/16"
Overall Width1 3/16"
ProfileLow Profile
Recharge Time24 hr
StandardsBC, CEC TITLE 20 COMPLIANT, CSA C22.2 NO.141, OUTPUT CLASS 2 COMPLIANT, ROHS COMPLIANT, UL924
