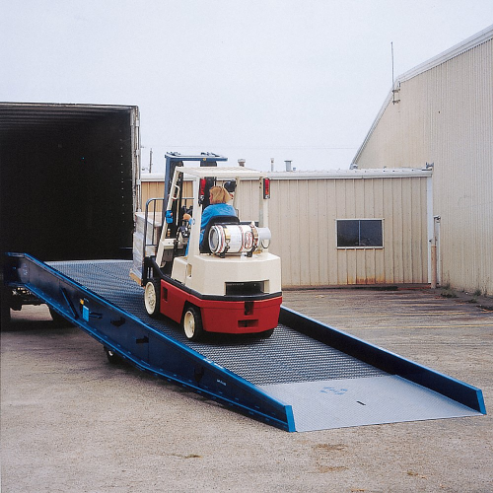

BLUFF 20SYS8436L Yard Ramp 20000 Lb 36 Feet Width 84 In
Due to weight and dimension restrictions, please request a shipping quote
€33,879.05 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Portable Yard Ramp |
| Deck | Grating |
| Load Capacity | 20000 lbs. |
| Lowered Height | 33" |
| Material | Steel |
| Overall Length | 36 ft. |
| Overall Width | 84" |
| Raised Height | 67" |
| Side Rail Height | 8" |
| Usable Width | 78" |
| Apron Length | 30" |
| Color | Blue, Gray |
| End Style | Apron |
| Includes | Double-Action Hydraulic Pump, Safety Chains, Solid 18" Rubber Tires |
| Material Thickness | 1/4" |
| Maximum Load Capacity | 20000 lbs. |
| Maximum Service Height | 67" |
| Minimum Service Height | 33" |
| Product Type | Yard Ramp |
| Retracted Length | 36 ft. |
| Side Rail Type | Raised |
| Surface Type | Diamond Treadplate |
| Ship weight (kg) | 2721.6 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 91.44 |
| Ship width (cm) | 213.36 |
| HS code | 8428900290 |
| Country of Origin | US |
| Model | Load Capacity | Overall Length | Overall Width | Price | |
|---|---|---|---|---|---|
| 16SYS7030 | 16,000 lb. | 30ft. | 70" | €24,334.25 | RFQ
|
| 16SYS8436L | 16,000 lb. | 36' Including a 6' Level Off | 84" | €30,360.14 | RFQ
|
| 20SYS8430 | 20,000 lb. | 30ft. | 84" | €29,822.93 | |
| 16SYS8430 | 16,000 lb. | 30ft. | 84" | €24,261.90 | RFQ
|
| 20SYS7030 | 20,000 lb. | 30ft. | 70" | €23,490.24 | RFQ
|
| 20SYS7036L | 20,000 lb. | 36' Including a 6' Level Off | 70" | €30,564.54 | RFQ
|
