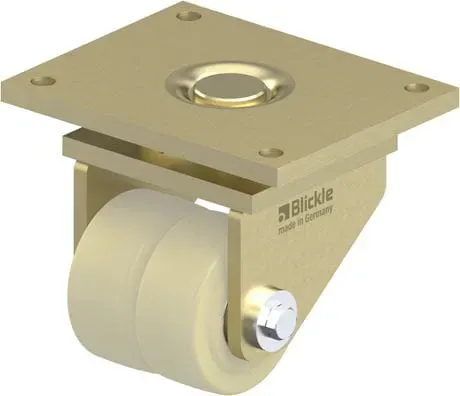

BLICKLE LSD-GSPO 125K Dual Wheel Swivel Caster 7920 Lb 5 Inch Diameter Nyl
Get it by Tuesday, Jun 17
€1,086.88 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Dual Wheel Swivel Caster |
| Caster Brake Included | No |
| Caster Load Rating Range | Greater Than 6000 lbs. |
| Caster Material | Nylon |
| Caster Product Group | Swivel Caster |
| Caster Shape | Standard |
| Caster Type | Swivel |
| Core Color | Tan |
| Core Material | Nylon |
| Durometer | 80 Shore D |
| Frame Finish | Zinc Chromate |
| Frame Material | Steel |
| Hole Pattern | D |
| Inside Bolt Hole Spacing | 6 5/16" x 8 1/4" |
| Load Rating | 7920 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 5/8" |
| Number Of Wheels | 2 |
| Outside Bolt Hole Spacing | 6 5/16" x 8 1/4" |
| Overall Height | 8.062" |
| Plate Size | 7 7/8" x 10 3/64" |
| Plate Thickness | 3/8" |
| Plate Type | C |
| Raceway Type | Ball, Roller Tapered Bearing |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | White |
| Wheel Dia. | 5" |
| Wheel Material | Nylon |
| Wheel Width | 2" x 2 11/64" |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Sub-type | Swivel |
| Includes Thread Guards | No |
| Mounting Height | 8 1/8" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 7 7/8" x 10 1/16" |
| Mounting Plate Size & Bolt Hole Pattern | 7 7/8" x 10 1/16" ( D ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double/Single Ball |
| Tread Shape | Standard |
| Wheel Core Material | Nylon |
| Wheel/tread Color | White |
| Wheel/tread Hardness | 80 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Nylon |
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 19.99 |
| HS code | 8302200000 |
| Country of Origin | DE |
| Product | Model | Caster Load Rating Range | Caster Wheel Material | Core Color | Core Material | Durometer | Frame Finish | Inside Bolt Hole Spacing | Load Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LSD-GSPO 80K | 3000 to 5999 lb. | Nylon | Tan | Nylon | 80 Shore D | Yellow Zinc Chromate | 2-3/4 x 4-3/16" | 3850 lb. | €229.27 | |
|
LSD-GSPO 100K | 3000 to 5999 lb. | Nylon | Tan | Nylon | 80 Shore D | Yellow Zinc Chromate | 4-3/16 x 5-1/2" | 4840 lb. | €477.01 | |
 |
LHD-VSTH 60K | 300 to 999 lb. | Polyurethane | Silver | Steel | 92 Shore A | Zinc Plated | 2-3/8 x 3-1/8" | 792 lb. | €324.31 | |
 |
LHD-GSPO 60K | 1000 to 2999 lb. | Nylon | Tan | Nylon | 80 Shore D | Zinc Plated | 2-3/8 x 3-1/8" | 1540 lb. | €270.53 | |
 |
LHD-SPO 75K | 1000 to 2999 lb. | Nylon | White | Nylon | 70 Shore D | Zinc Plated | 2-3/8 x 3-1/8" | 1320 lb. | €183.43 | |
 |
LHD-VSTH 80K | 1000 to 2999 lb. | Polyurethane | Silver | Steel | 92 Shore A | Zinc Plated | 2-3/4 x 4-3/16" | 1232 lb. | €301.08 |
