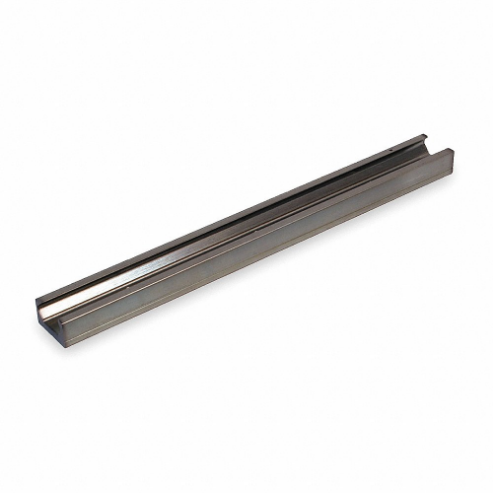

BISHOP-WISECARVER UTTS2G0960 Linear Guide 960mm L 40 Mm W 19.7 Mm H
Get it by Wednesday, Jun 18
€596.63 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Linear Guide |
| Channel Depth | 3/5" |
| Load Direction | Axial, Radial |
| Material | Alloy Steel |
| Mounting Hole Center To Center | 80 mm |
| Mounting Hole From Shaft End | 40 mm |
| Mounting Hole Size | 8.8 mm |
| Number Of Rail Holes | 12 |
| Overall Height | 19.7 mm |
| Overall Length | 960 mm |
| Overall Width | 40 mm |
| Raceway | Hardened |
| Raceway Type | Hardened |
| Rail Finish | Ground |
| Rail Type | Channel |
| Requires Lubrication | Lubricant Required |
| Size | 2 |
| System Of Measurement | Inch |
| Temp. Range | -55°C to +100°C |
| Thickness | 0.177" |
| Type | SW Series |
| For Use With | SW Carriage Assembly |
| Maximum Operating Temperature | 212°F |
| Minimum Operating Temperature | 32.99°F |
| Nominal Rail Size | 2 |
| Rail Material | Steel |
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 1.97 |
| Ship length (cm) | 95.99 |
| Ship width (cm) | 4 |
| HS code | 7228706000 |
| Country of Origin | US |
| Product | Model | Mounting Hole Size | Overall Height | Overall Width | Raceway | Thread Size | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
UTTS1G0960 | 5.8mm | 15mm | 26mm | Hardened | M5 | SW Series | €572.67 | |
|
UTTS3G0960 | 8.8mm | 30mm | 58mm | Hardened | M8 | SW Series | €978.90 | |
 |
UTTRS1G0960 | 5.8mm | 15mm | 26mm | Hardened | M5 | SW Series | €563.46 | |
|
UTTRS2G0960 | 8.8mm | 19.7mm | 40mm | Hardened | M8 | SW Series | €689.42 | |
 |
UTTRS3G0960 | 8.8mm | 30mm | 58mm | Hardened | M8 | SW Series | €637.08 | |
 |
UTTA0G0960 | 4.8mm | 11mm | 20mm | Aluminum | M4 | PW Series | €116.15 | |
|
UTTA1G0960 | 5.8mm | 15mm | 26mm | Aluminum | M5 | PW Series | €126.71 |
